Product detailed description

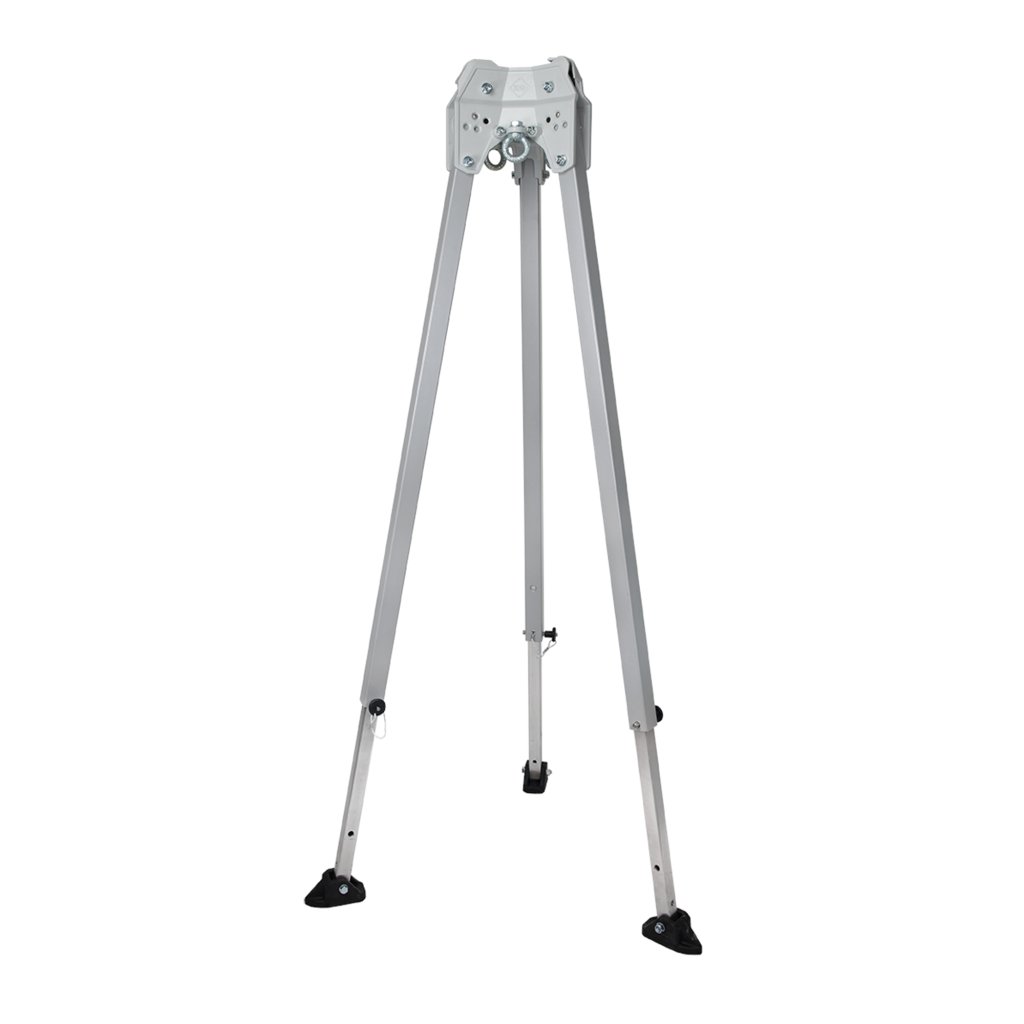

IKAR DB-A3 TRIPOD / X4002XX00

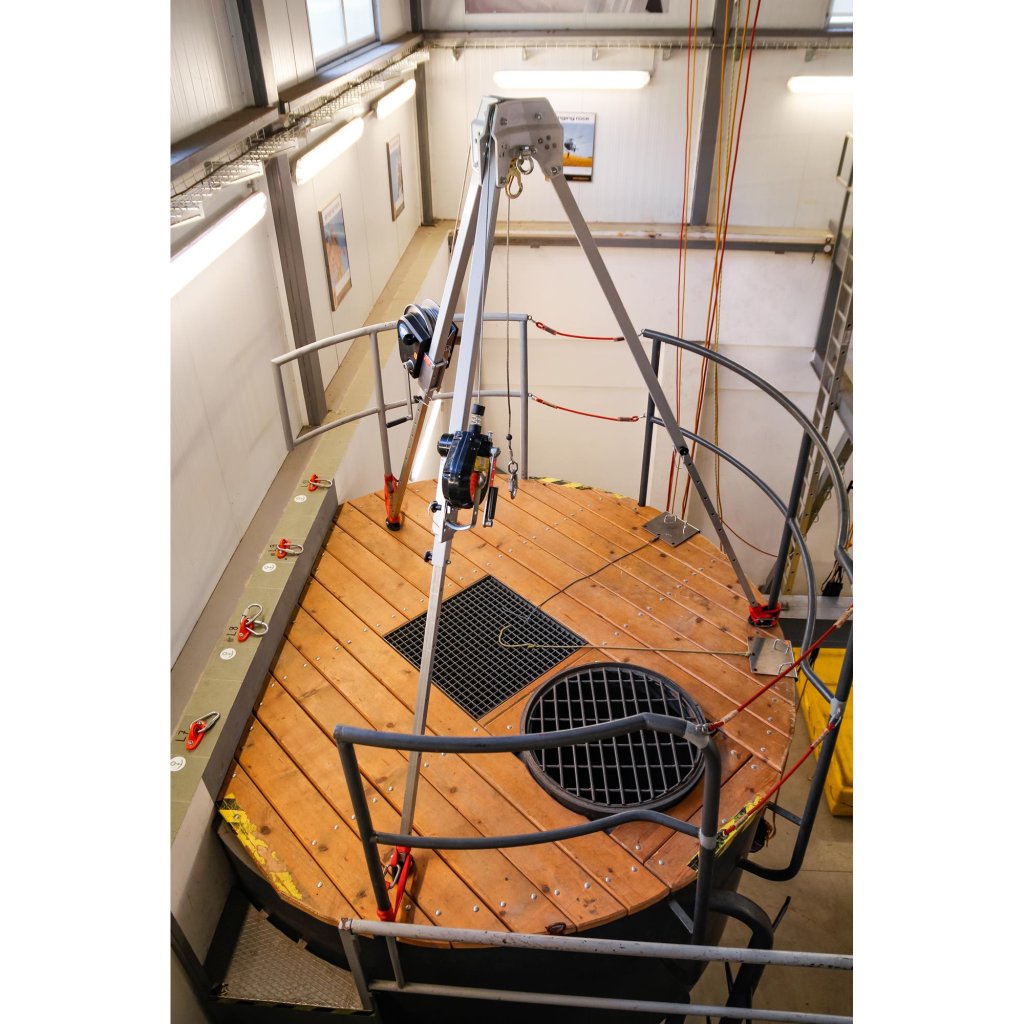

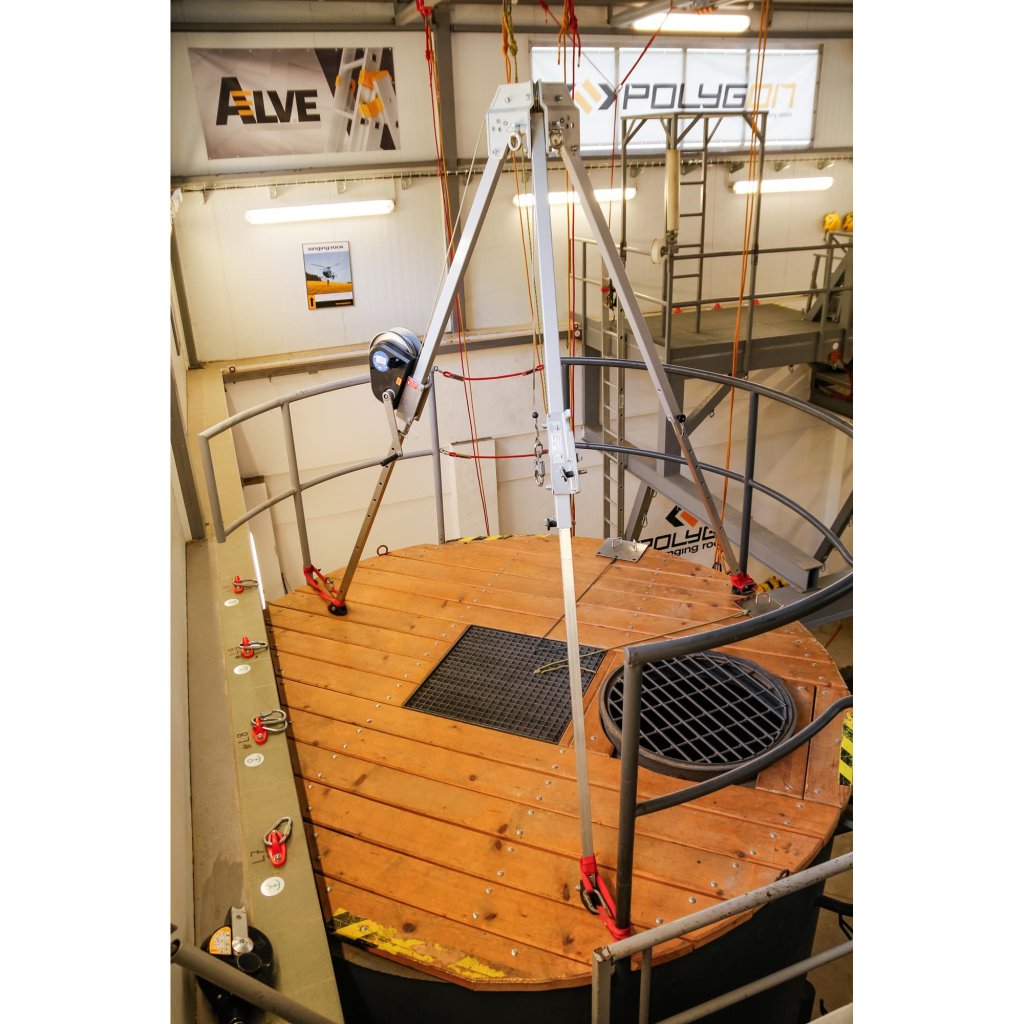

Portable tripod with adjustable legs and 3 integrated pulleys. The head design allows the legs to be adjusted at many angles without the use of a locking chain between the feet. Ideal economical solution for confined spaces, fall arrest and rescue.
- Aluminium tripod with anti-corrosion treatment equipped with 3 anchor points
- max. height when unfolded 2.54 m, min. height when unfolded 1.43 m
- folded dimension for transport 1.56 m, weight 24 kg
- two-piece independently adjustable telescopic legs with stainless steel locking pins are finished with folding rubber feet with soft surface toe
- independent adjustment of the legs allows use on uneven terrain, the legs can be fixed at different lengths and three different opening angles

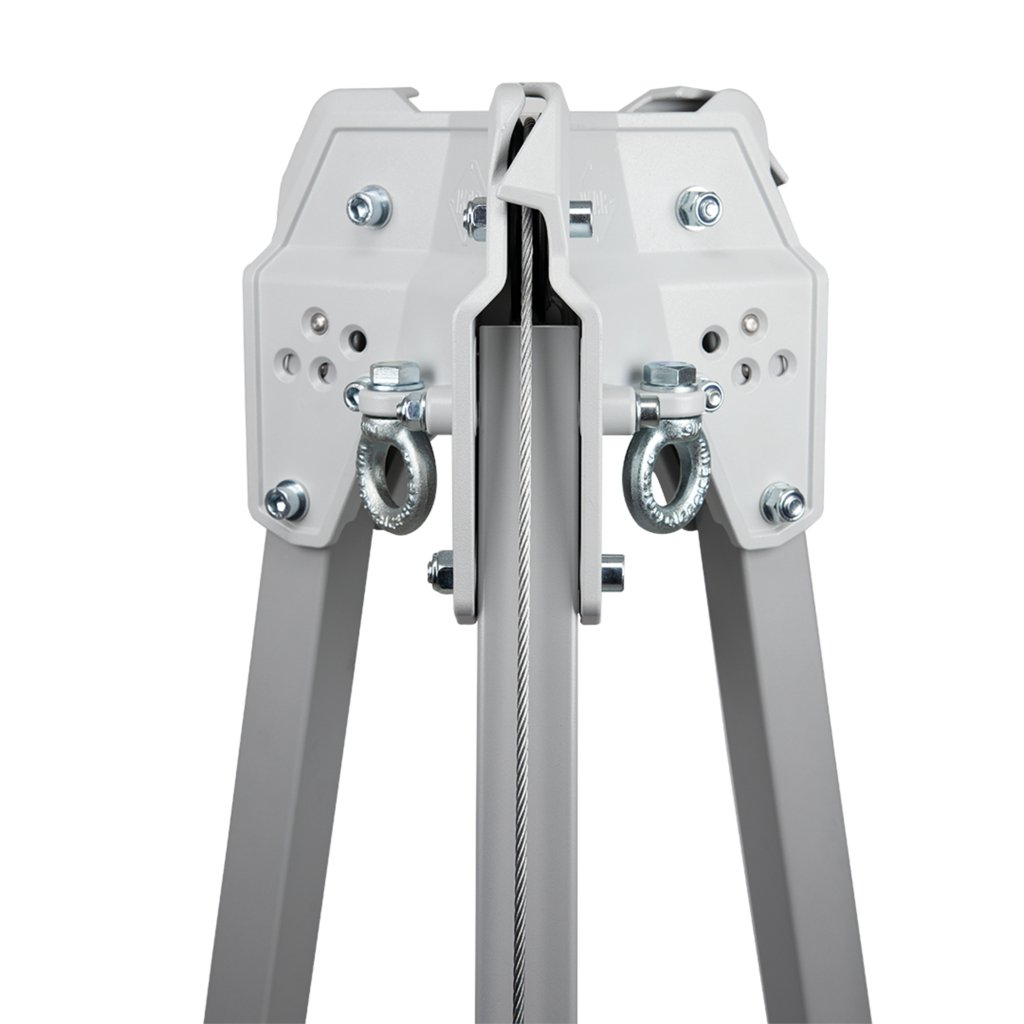

- 3 pulleys integrated in the die-cast tripod head
- thanks to its design, the tripod does not need a locking chain between the feet, eliminating the risk of tripping
- suitable for two persons, max. load capacity 300 kg
Note: The accessories shown in Figures 1, 2 and 3 (catcher/bracket) are not included in the product.

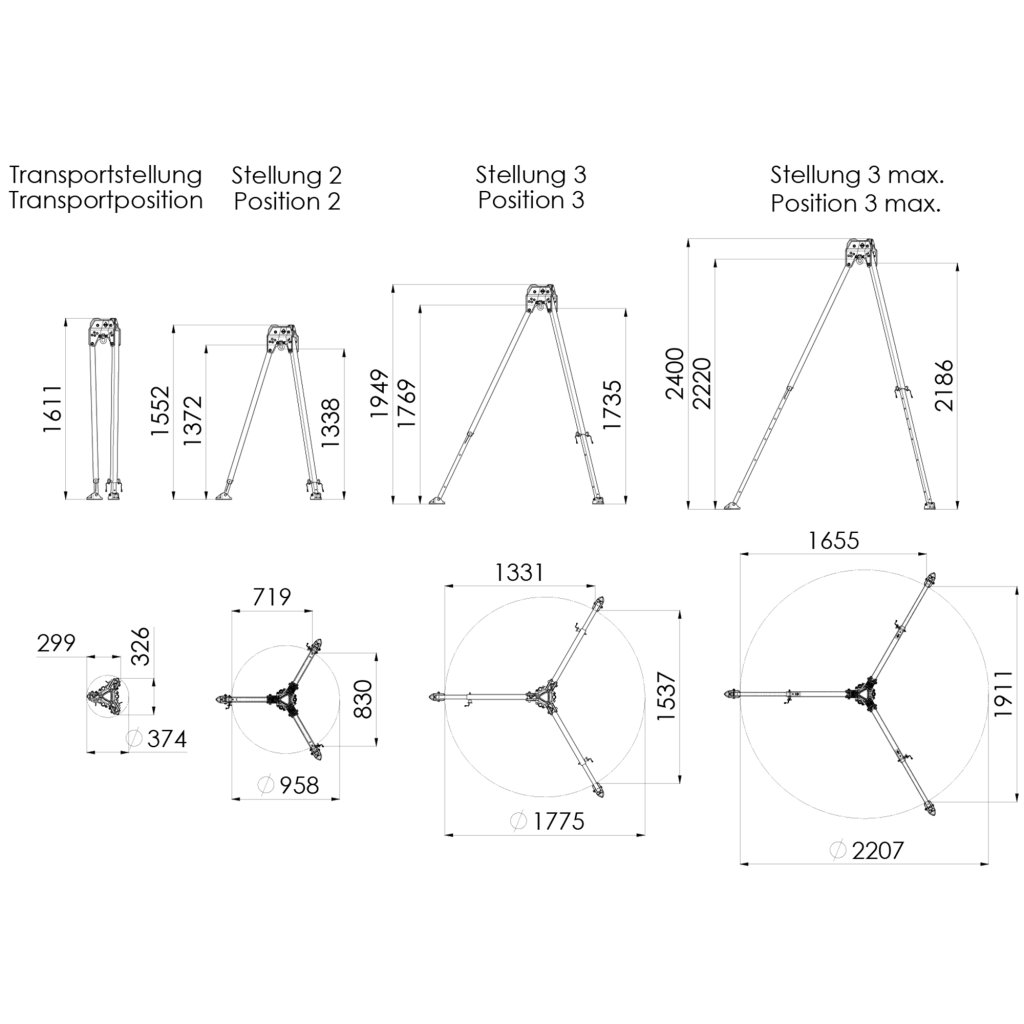

Height: min. 1.43 m, max. 2.54 m
Diameter: min. 0.64 m, max. 2.19 m
Weight: 24 kg
0299EN 795 Type BCEN/TS 16415
Accessories:

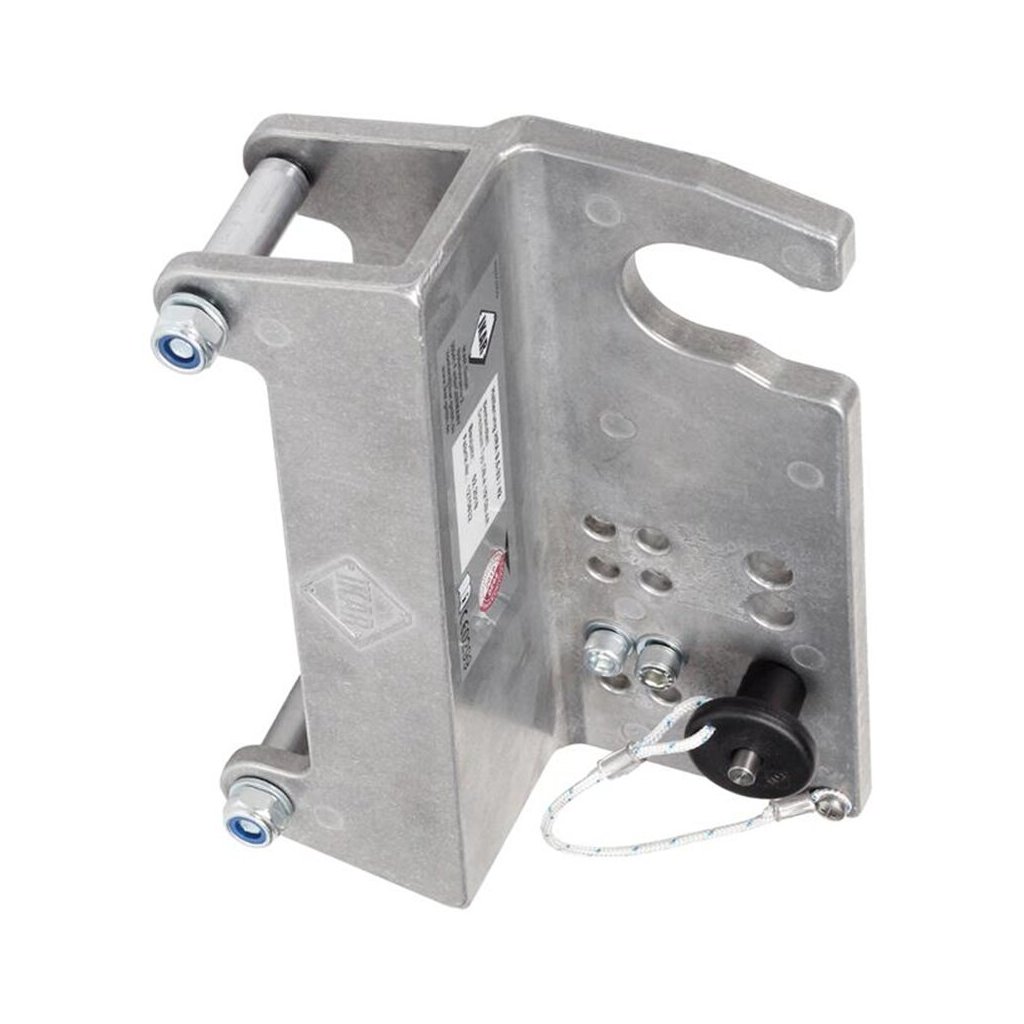

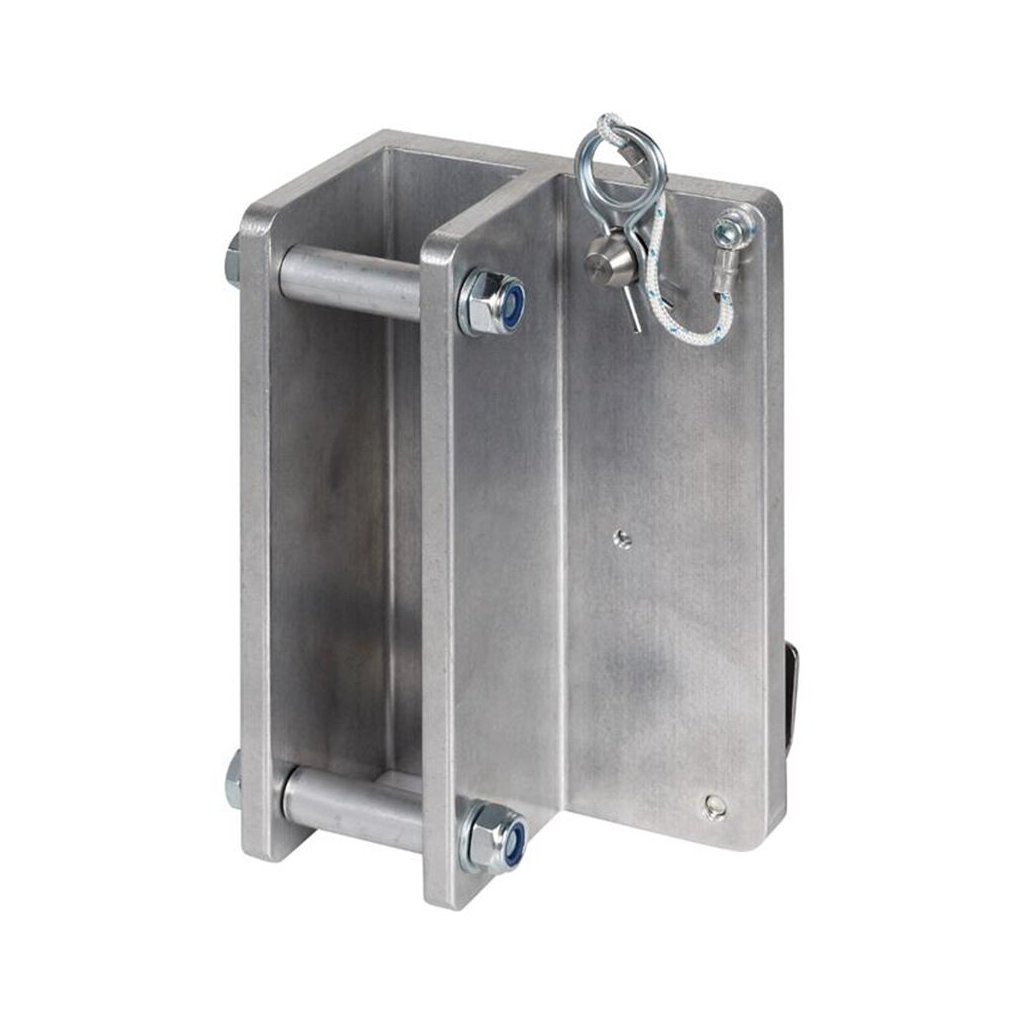

IKAR BRACKET FOR TRIPOD WINCH / X4004XX00
- Aluminium alloy bracket for connecting the IKAR PLW winch to the IKAR DB-A3 tripod
- dimensions: 200 x 130 x 82.5 mm (length x width x height)
- weight: 2 kg
IKAR GAME BRACKET FOR TRIPOD / X4003XX00
- Universal bracket made of aluminium alloy for attaching IKAR HRA retractable fall arresters with raise and lower function (up to 30 m long) to the IKAR DB-A3 tripod
- Dimensions: 255 x 165 x 78 mm (length x width x height)
- weight: 1,8 Kg

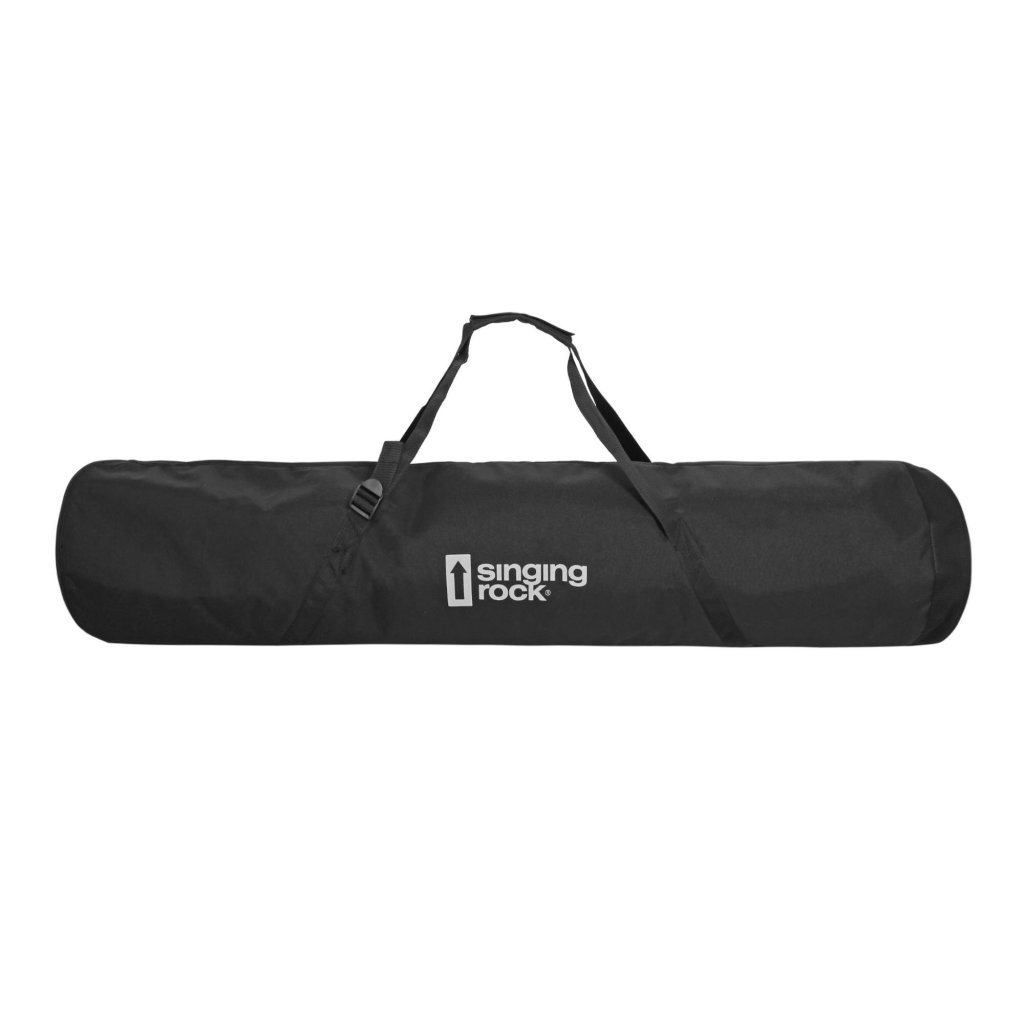

TRIPOD BAG / A4070XX00
- Durable cover for protection and transport of the tripod
- easier transport of the tripod to the workplace with shoulder straps
- top access to the bag via zipper
- Mechanical resistance is ensured by the double-layer PVC shell
- dimensions 160 x 30 cm / weight 2 kg / load capacity 30 kg
