Product detailed description
IKAR's lifting crane has a modular anchoring system that allows it to be used in a variety of conditions. There are several types of anchoring bases - stand-alone, wall or floor mounted, concreted or for attachment to the attic. The crane is attached to the base by a simple plug-in mechanism that allows for quick installation and allows the crane to rotate on its axis. To create your lifting system, select the appropriate temporary or permanent base and the required bracket to attach the HRA fall arresters and PLW winch to the crane .
IKAR ASS-1 LIFTING CRANE / X4005XX00
Lifting crane with a permanent 49° angle for stationary use designed for two person rescue and for lifting and lowering loads.
- 3 built-in pulleys for guiding the wire ropes from the winch and catcher
- Crane construction made of high quality V4A stainless steel
- Suitable for quick transfer from one base to another thanks to the folding arm and simple plug-in mechanism
- if necessary, the arm can be removed from the column for transport
- additional attachment point for securing the person operating the crane
- suitable for two persons, max. load capacity 300 kg
Material: stainless steel V4A
Height: 2.01 m
Reach: 0.74 m
Weight: 28.7 kg
CE 0299 - EN 795 Type B - CEN/TS 16415

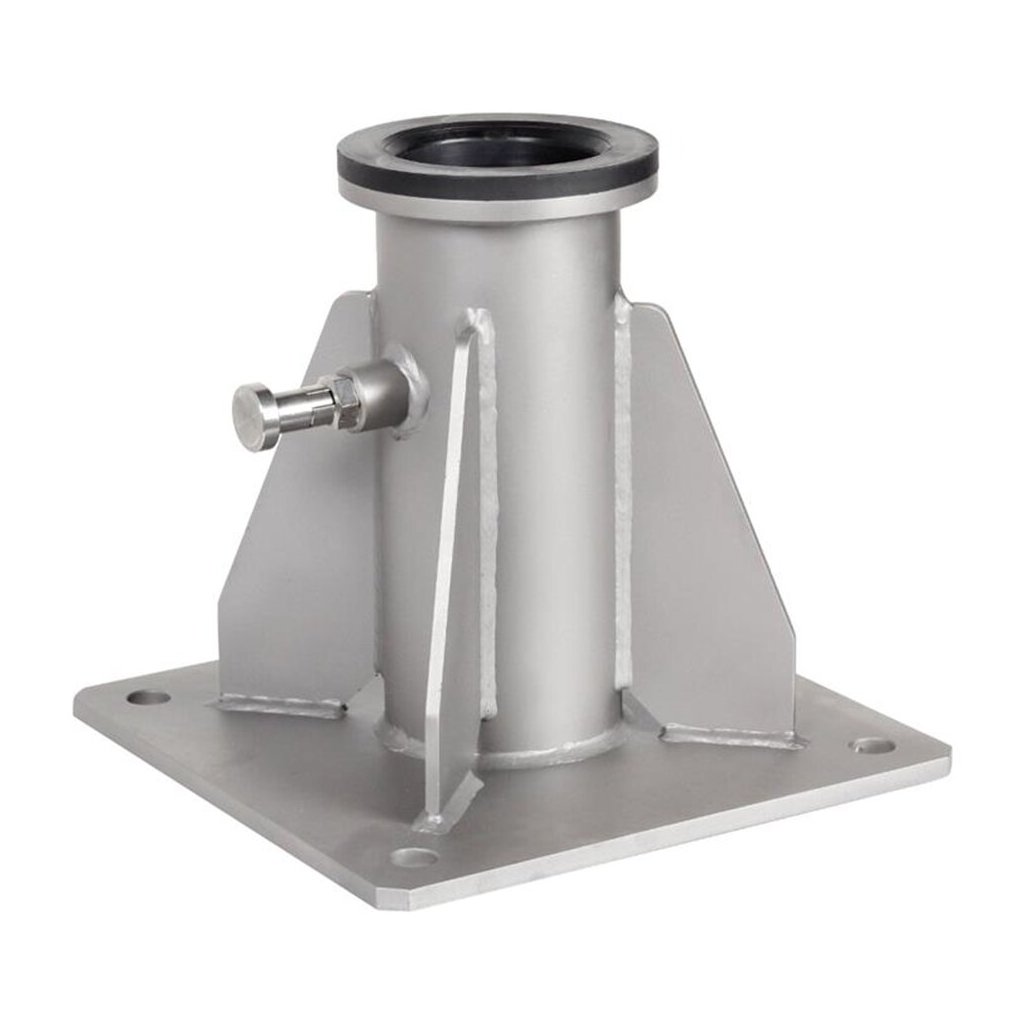

IKAR FLOOR MOUNTING BASE / X4006XX00
Base for floor mounting. The inner part of the base is made of durable polyamide, which guarantees easy rotation of the crane. The base can be mounted on concrete surfaces using the recommended mounting kit for floor and wall bases (type MKT VMZ-AA4 145 M16-30/200) or on steel structures using M16 bolts with strength 8.8.
Material: stainless steel1.4571 (V4A), PA
Dimensions: 300 x 240 x 280 mm (length x height x width)
Weight: 13.5 kg
EN 795 Type A - CEN/TS 16415

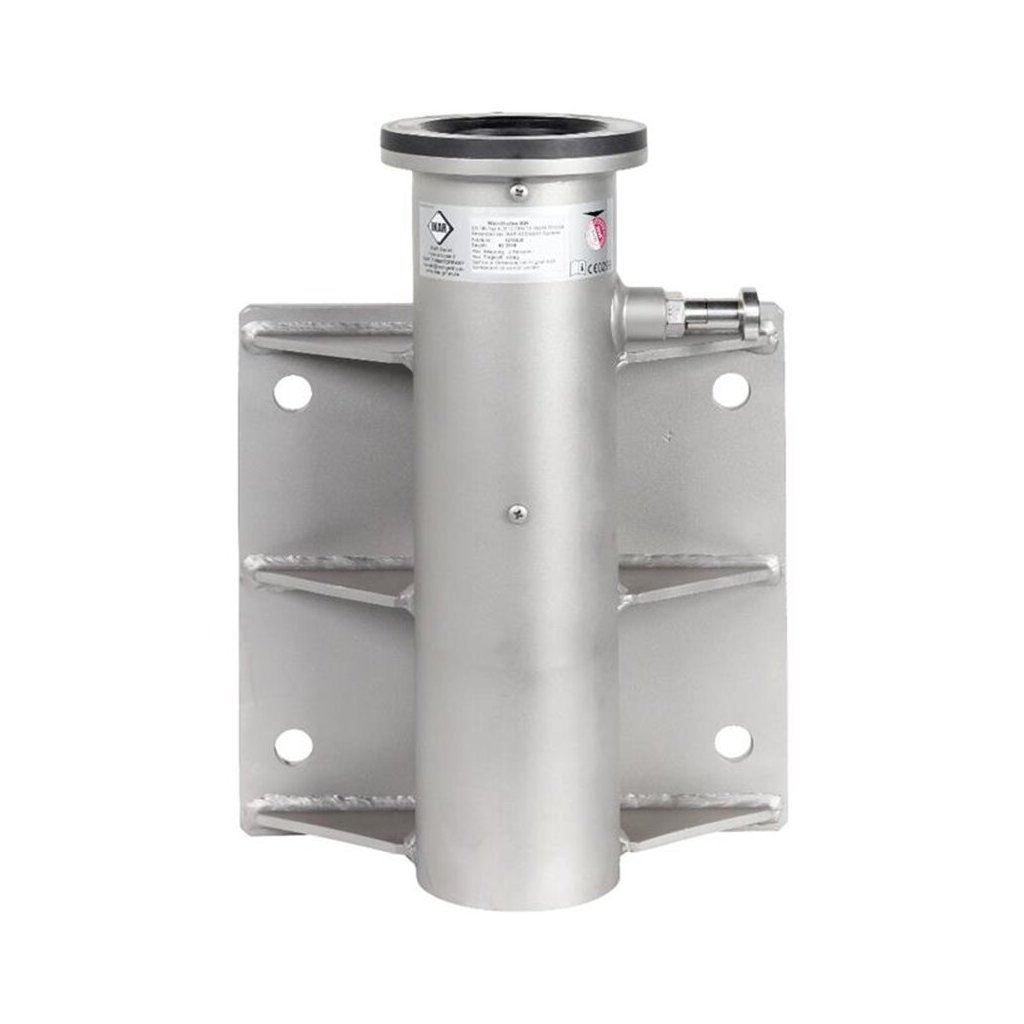

IKAR WALL MOUNTING BASE / X4007XX00
Base for wall mounting. The inner part of the base is made of durable polyamide, which guarantees easy rotation of the crane. The base can be mounted on concrete surfaces using the recommended MKT VMZ-AA4 145 M16-30/200 type mounting kit for floor and wall bases, or on steel structures using M16 bolts with a strength of 8.8.
Material: stainless steel1.4571 (V4A), PA
Dimensions: 290 x 300 x 410 mm (length x height x width)
Weight: 14.9 kg
EN 795:2012 Type A - CEN/TS 16415:2013

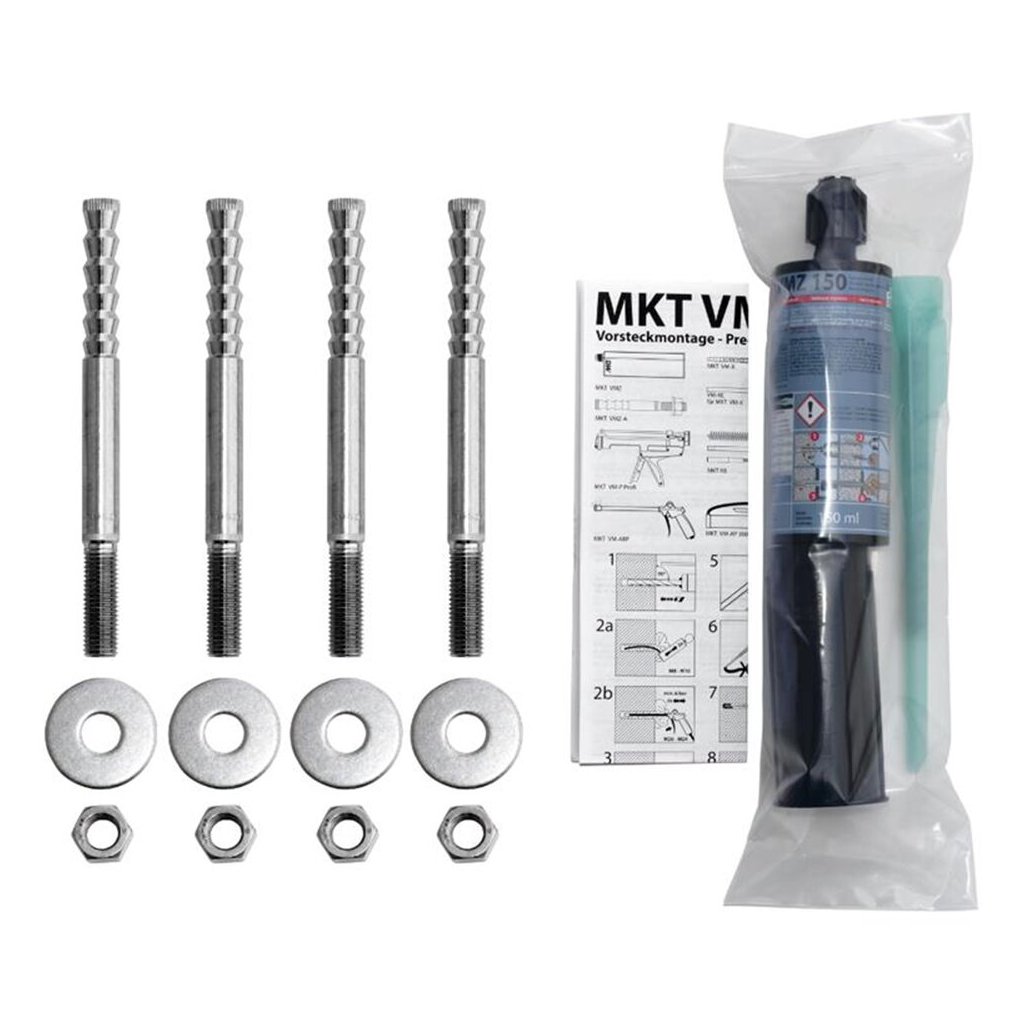

MOUNTING KIT FOR FLOOR AND WALL BASES / X4008XX00
Composite mounting kit type MKT VMZ-AA4 145 M16-30/200 for IKAR floor and wall bases.
IKAR BASE FOR CONCRETING / X4009XX00
Base for concreting into a cast floor. The inner part of the base is made of durable polyamide guaranteeing easy rotation of the crane and equipped with a connection to a drainage pipe for water drainage. The concrete used must be at least B 25 quality.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 280 x 420 mm (width x height)
Weight: 12 kg
EN 795 Type A - CEN/TS 16415
IKAR CONCRETE BASE / X4010XX00
Base for core drilled holes in concrete. The inner part of the base is made of durable polyamide guaranteeing easy rotation of the crane and equipped with a connection to a drainage pipe for water drainage. The base is fixed in the concrete with non-shrinking grout.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 160 x 335 mm (width x height)
Weight: 4.6 kg
EN 795 Type A - CEN/TS 16415

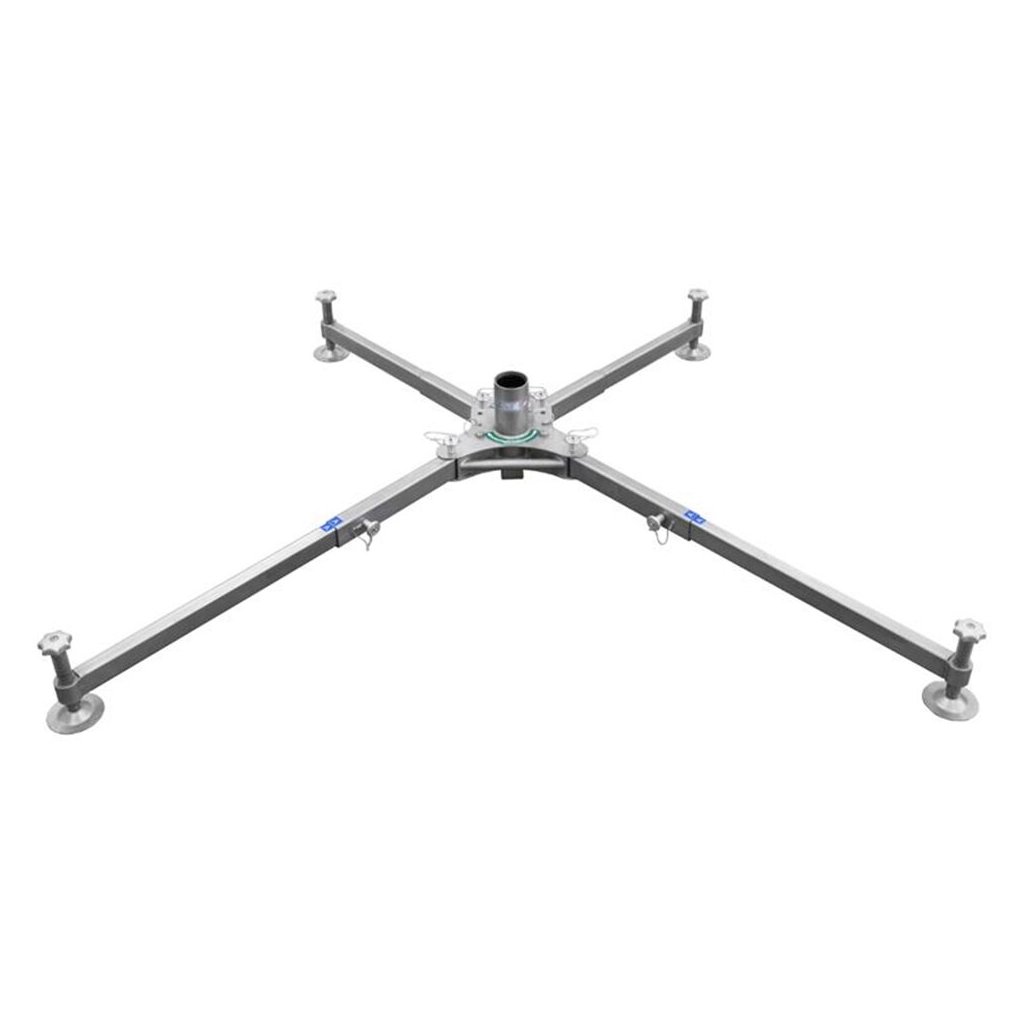

IKAR MOBILE BASE / X4011XX00
Self-contained base for quick and easy installation on an open area. The base consists of a central bracket for the crane and two pairs of front and rear height-adjustable legs that detach for transport. The inside of the slot for inserting the crane post is made of durable polyamide, which ensures easy 360° rotation of the crane.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 1763 x 2228 x 450 mm (length x width x height)
Weight: central bracket 23.4 kg, front legs 8.1 kg each, rear legs 9.2 kg each
CE 0299 - EN 795 Type B - CEN/TS 16415

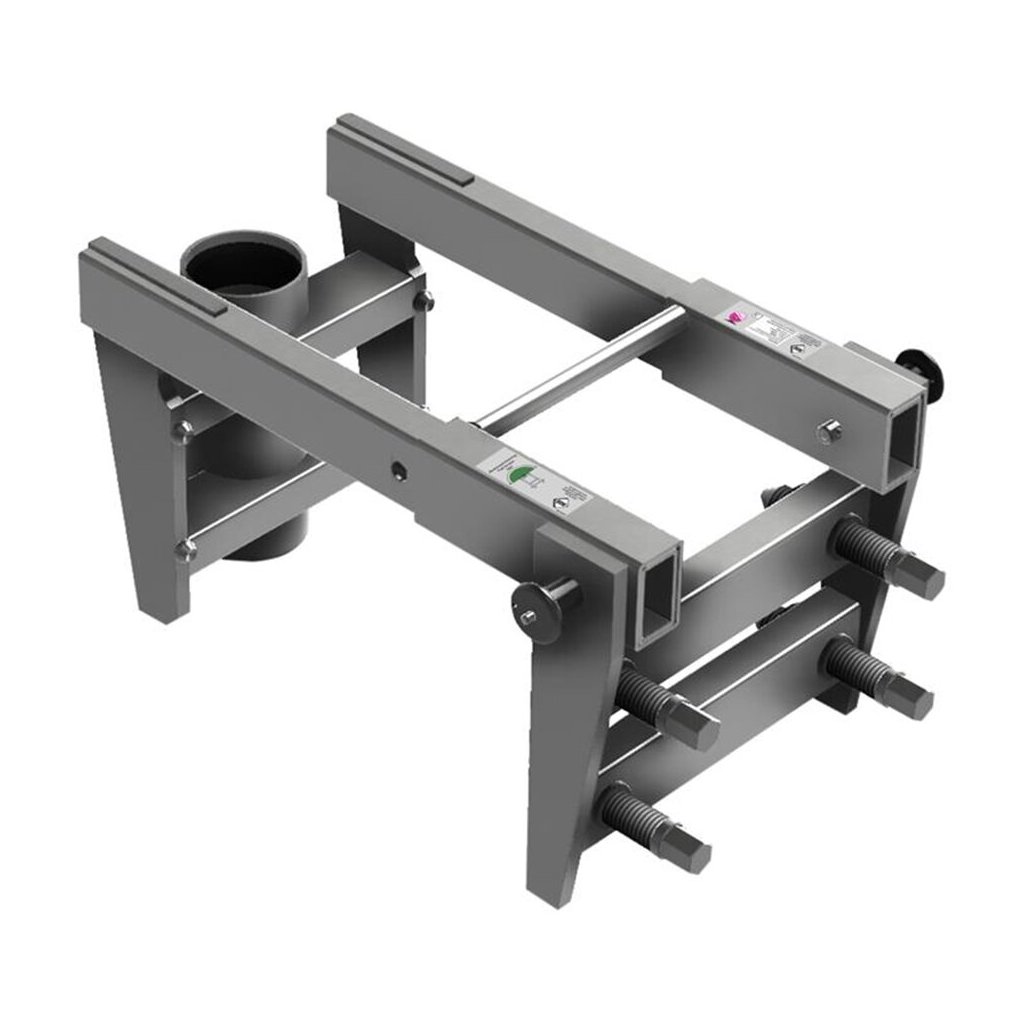

IKAR ATTIC BASE / X4012XX00
Base for fixing the crane to the top of a 200-400 mm thick attic or to the edge of a container. Ideal solution for locations where frequent assembly and disassembly is required.
Material: stainless steel 1.4571 (V4A)
Dimensions: 350 x 729 x 335 mm (length x width x height)
Weight: 35 kg
CE 0299 - EN 795 Type B - CEN/TS 16415

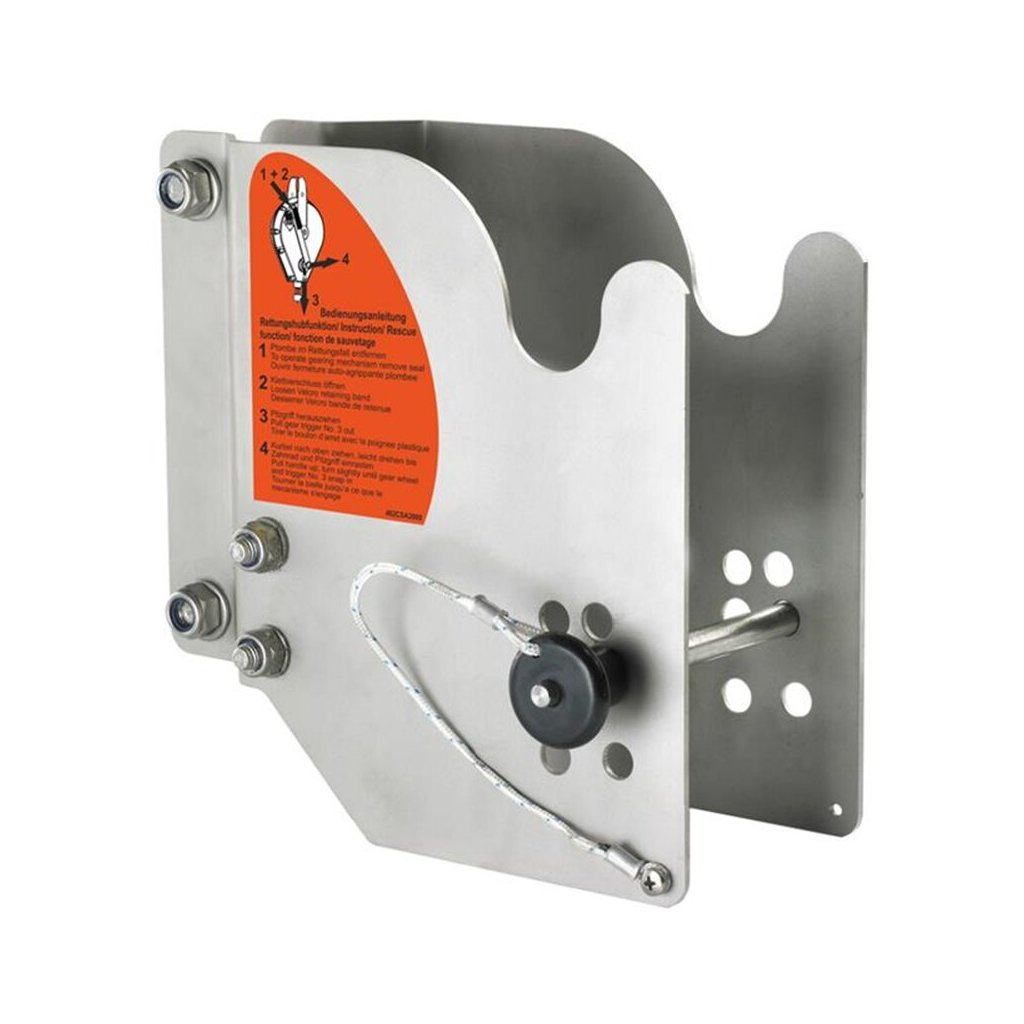

IKAR GAME 12-24 CRANE BRACKET / X4013XX00
IKAR GAME 33 CRANE BRACKET / X4014XX00
Stainless steel bracket for attaching IKAR HRA retractable fall arresters with raise and lower function to IKAR crane. Screwed directly onto the crane column. The bracket is supplied complete with connection screws and stainless steel fixing pin.
Material: stainless steel 1.4571 (V4A)
Dimensions: 264 x 162 x 250 mm (length x width x height)
Weight: 3.5 kg (5 kg version HRA 33)

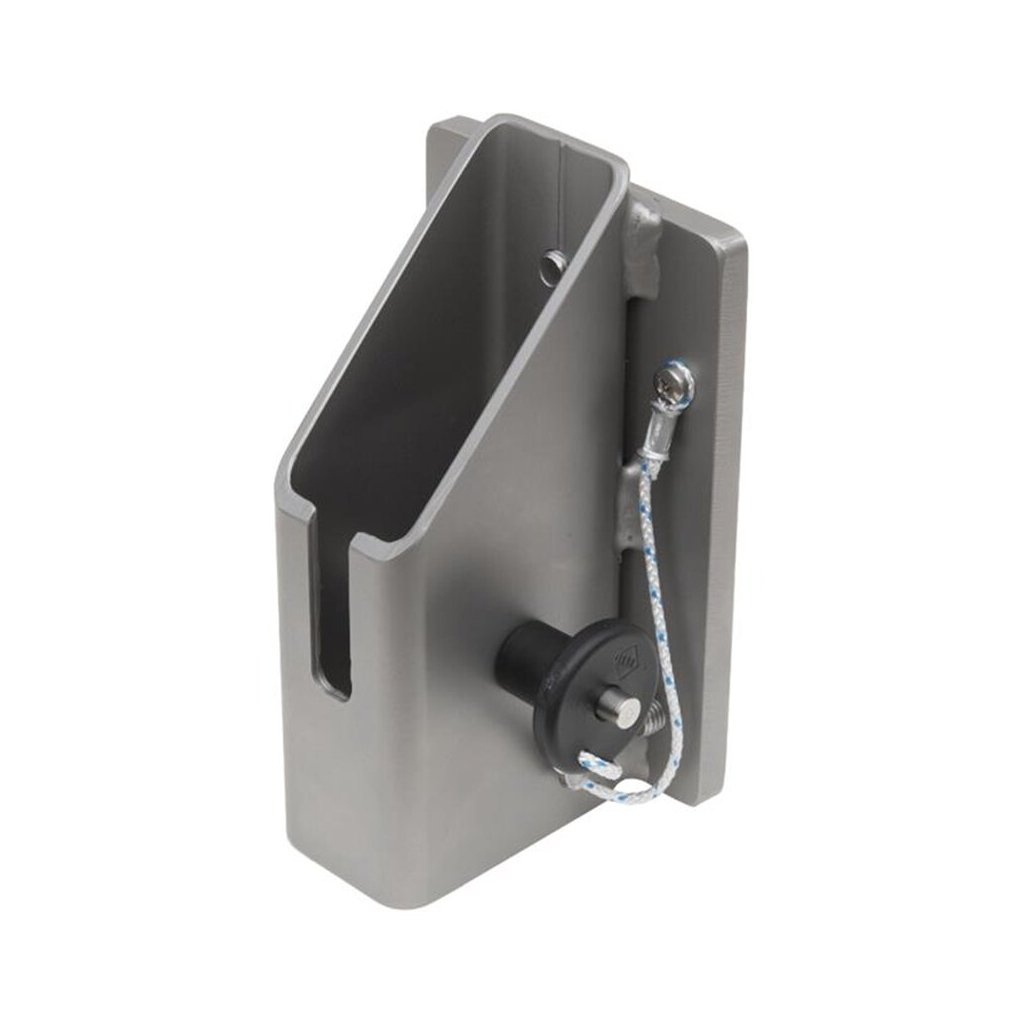

IKAR BRACKET FOR CRANE WINCH / X4015XX00
Aluminium alloy bracket for attaching the IKAR PLW winch to the IKAR crane arm. The bracket is supplied complete with connection screws and stainless steel fixing pin.
Material: aluminium alloy
Dimensions: 200 x 130 x 82.5 mm (length x width x height)
Weight: 2.4 kg
