Product detailed description

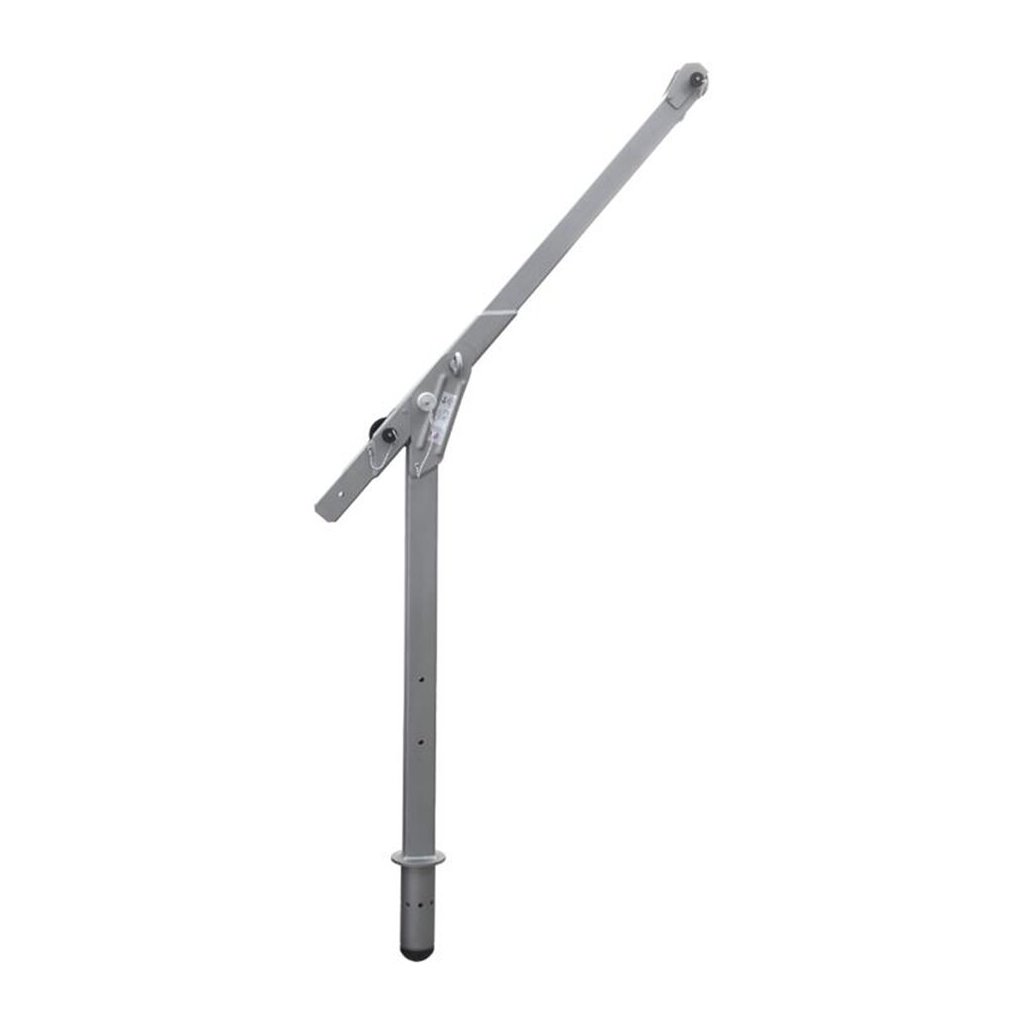

The lifting crane from IKAR has a modular anchoring system that allows it to be used in various conditions. There are several types of bases for anchoring - independent, attachable to the wall or floor, concreted or attached to the attic. The crane is attached to the base using a simple plug-in mechanism that allows for quick installation and allows the crane to rotate around its axis. To create your lifting system, select the appropriate temporary or permanent foundation for the lifting crane and the desired bracket to attach fall arresters HRA and winch PLW.< strong>IKAR ASS-1 LIFTING CRANE / X4005XX00
Lifting crane with a permanent angle of 49° for stationary use designed for securing and rescuing two people and for lifting and lowering loads.
- 3 built-in pulleys for guiding the steel cables from the winch and catch
- crane structure made of high quality V4A stainless steel
- suitable for quick relocation from one base to another thanks to the folding arm and simple plug-in mechanism
- if necessary, the arm can be removed from the post for transport
- additional connection point to secure the person who operates the crane
- suitable for two people, max. load capacity 300 kg
Reach: 0.74 m
Weight: 28.7 kg
CE 0299 • EN 795 Type B • CEN/TS 16415

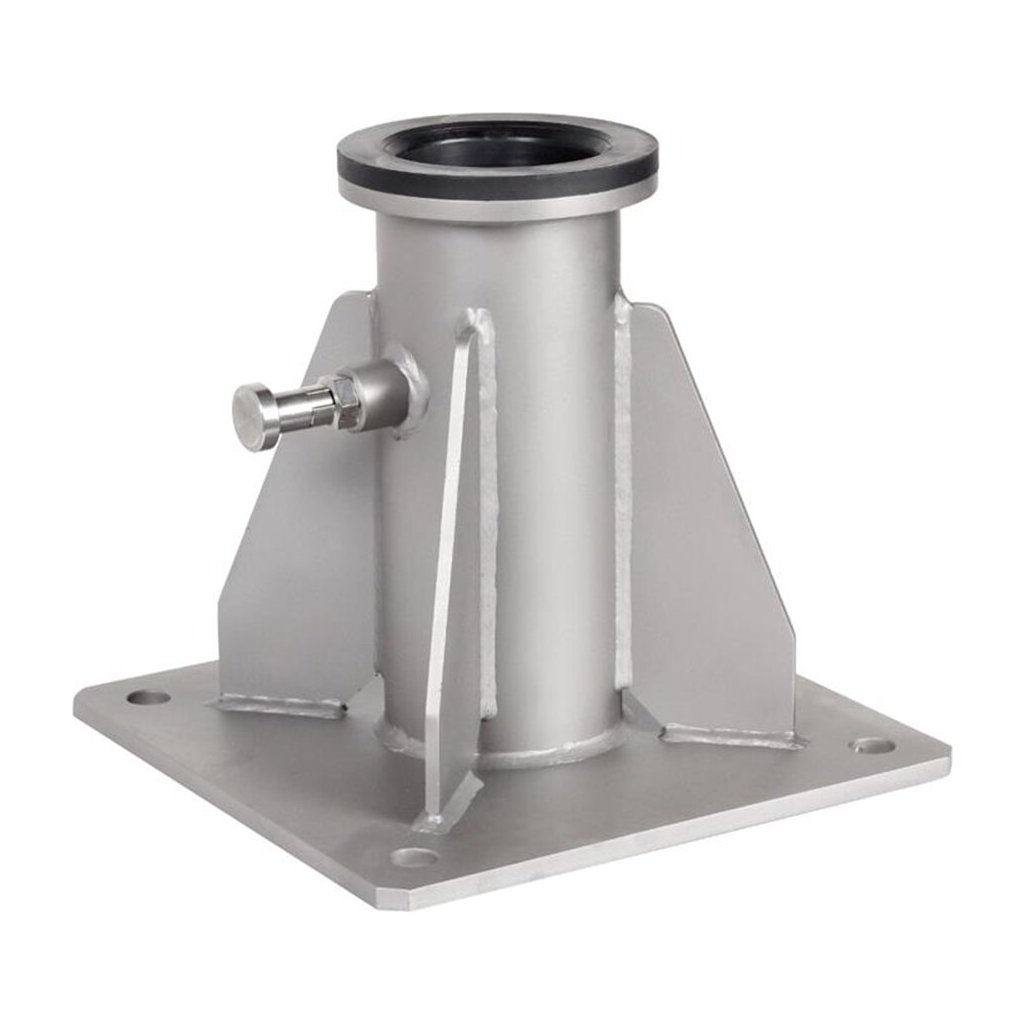

IKAR < /strong>BASE FOR MOUNTING ON THE FLOOR / X4006XX00
Base intended for mounting on the floor. The inner part of the base is made of durable polyamide, which guarantees easy turning of the crane. The base can be mounted on concrete surfaces using the recommended mounting kit for floor and wall bases (type MKT VMZ-AA4 145 M16-30/200) or on steel structures using M16 screws with a strength of 8.8.
Material: strong> stainless steel 1.4571 (V4A), PA
Dimensions: 300 x 240 x 280 mm (length x height x width)
Weight: 13.5 kg
EN 795 Type A • CEN/TS 16415

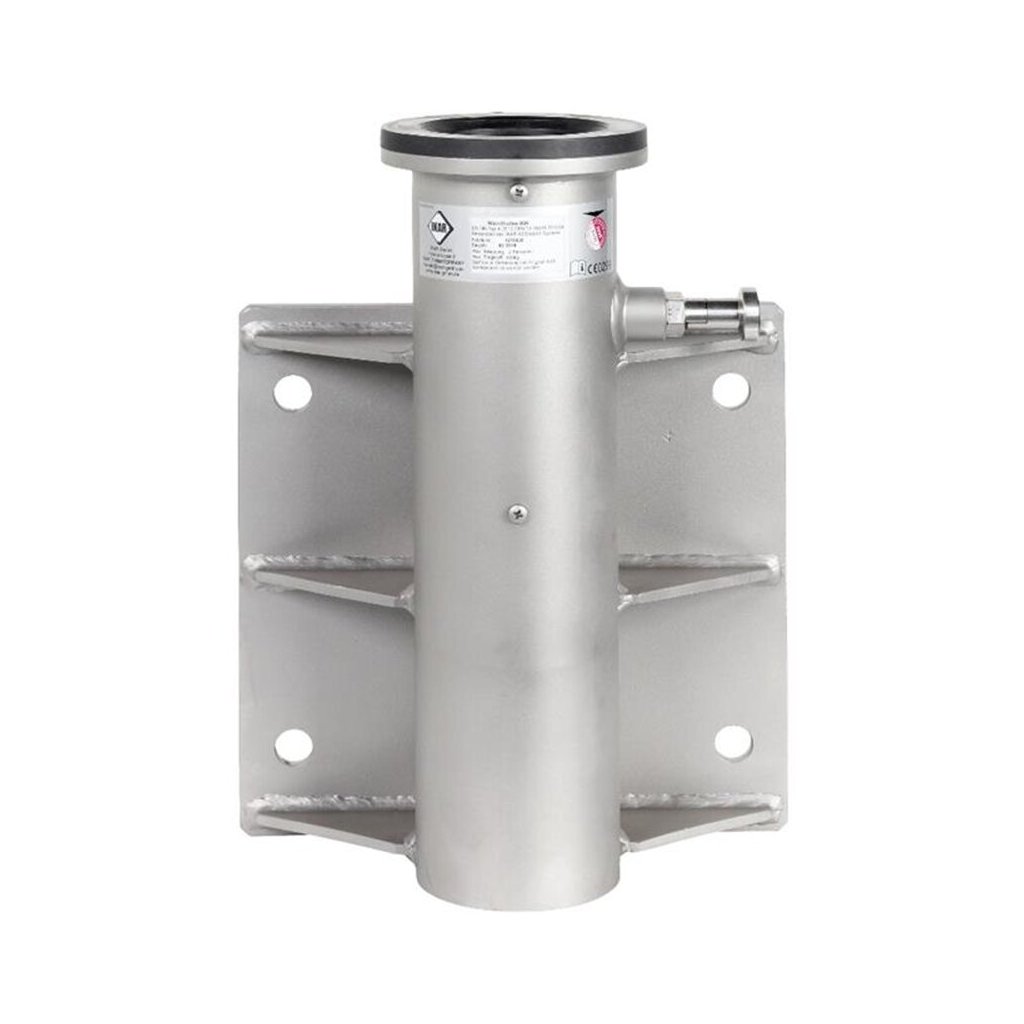

IKAR BASE FOR WALL MOUNTING / X4007XX00
Base designed for wall mounting. The inner part of the base is made of durable polyamide, which guarantees easy turning of the crane. The base can be mounted on concrete surfaces using the recommended mounting kit type MKT VMZ-AA4 145 M16-30/200 for floor and wall bases, or on steel structures using M16 screws with a strength of 8.8.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 290 x 300 x 410 mm (length x height x width)
Weight: 14.9 kg
EN 795:2012 Type A • CEN/TS 16415:2013

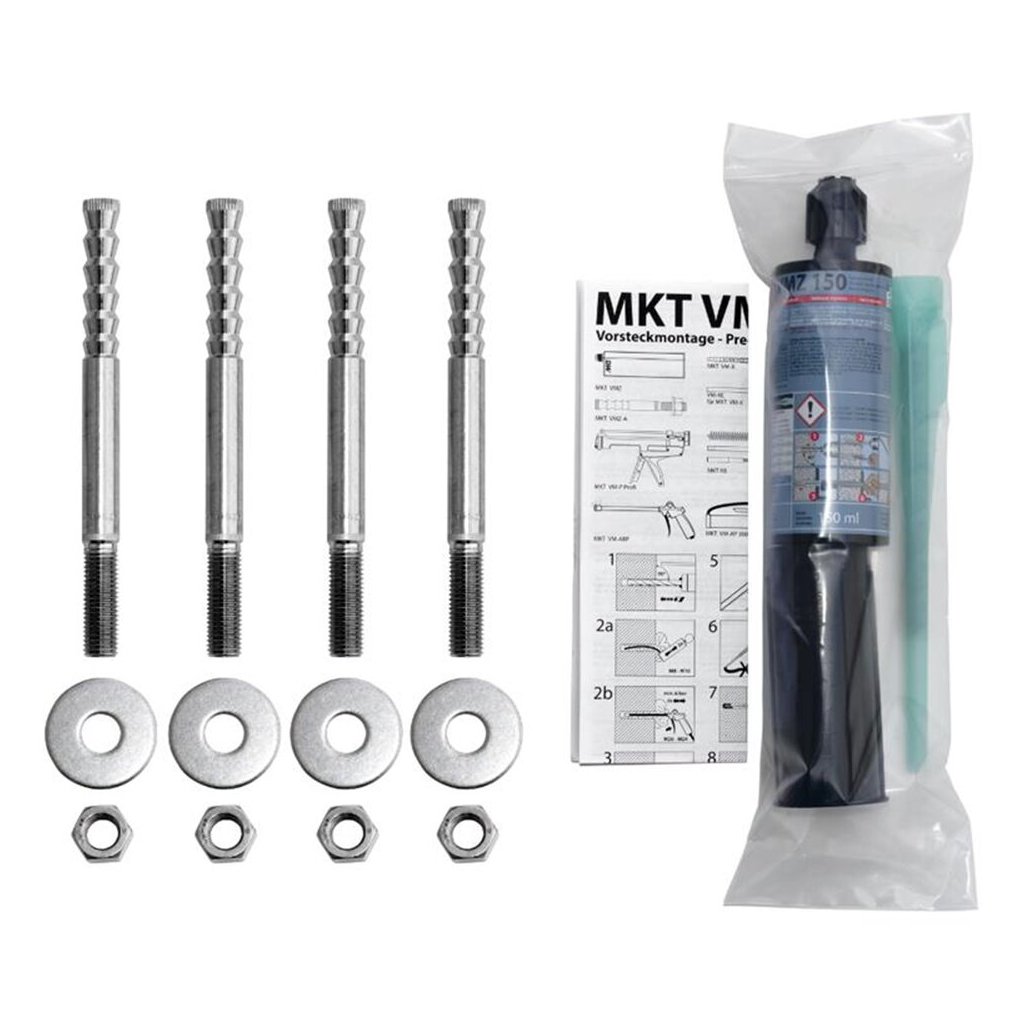

MOUNTING KIT FOR FLOOR AND WALL BASES / X4008XX00
Composite mounting kit type MKT VMZ-AA4 145 M16-30/200 for IKAR floor and wall bases.

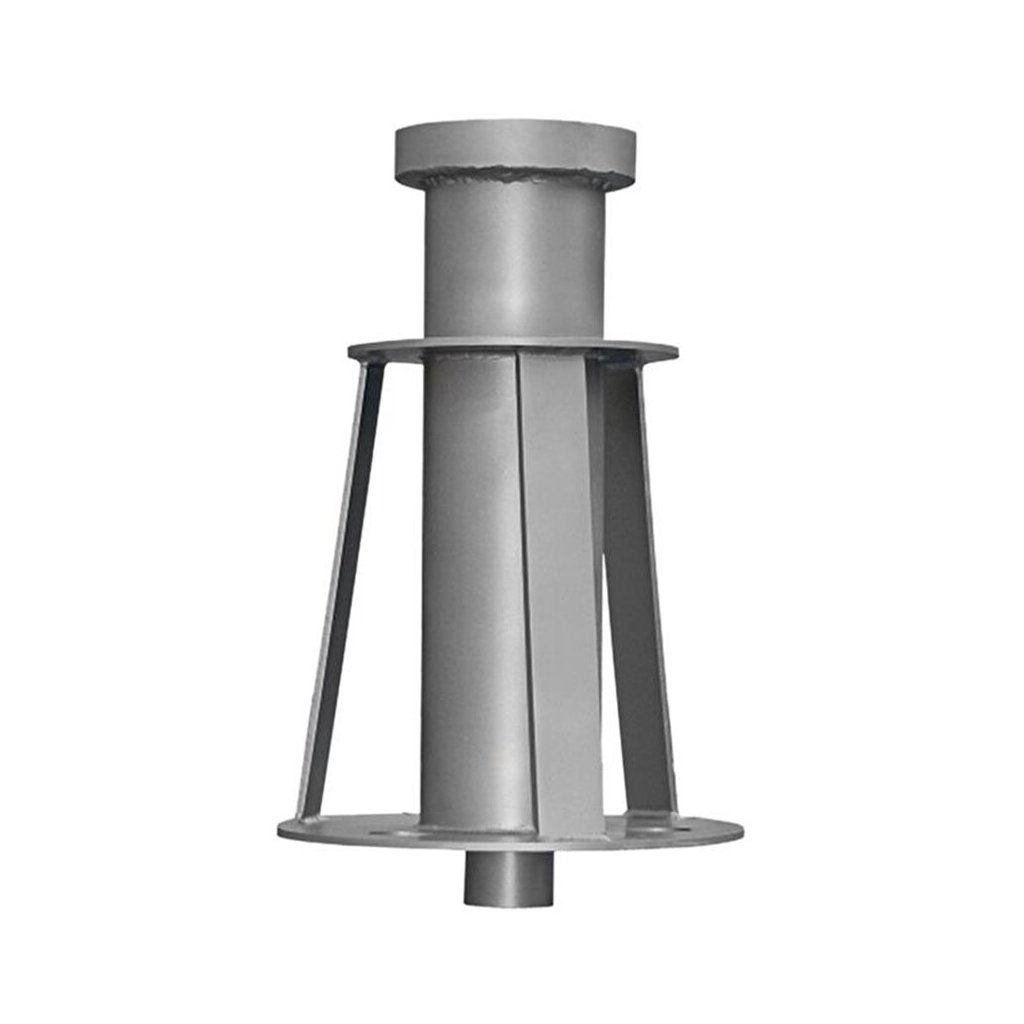

IKAR BASE FOR CONCRETING / X4009XX00
Base for concreting into cast floor. The inner part of the base is made of durable polyamide, guaranteeing easy turning of the crane and equipped with a connection to a drainage pipe for water removal. The concrete used must be of at least quality B 25.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 280 x 420 mm (width x height)
Weight: 12 kg
EN 795 Type A • CEN/TS 16415

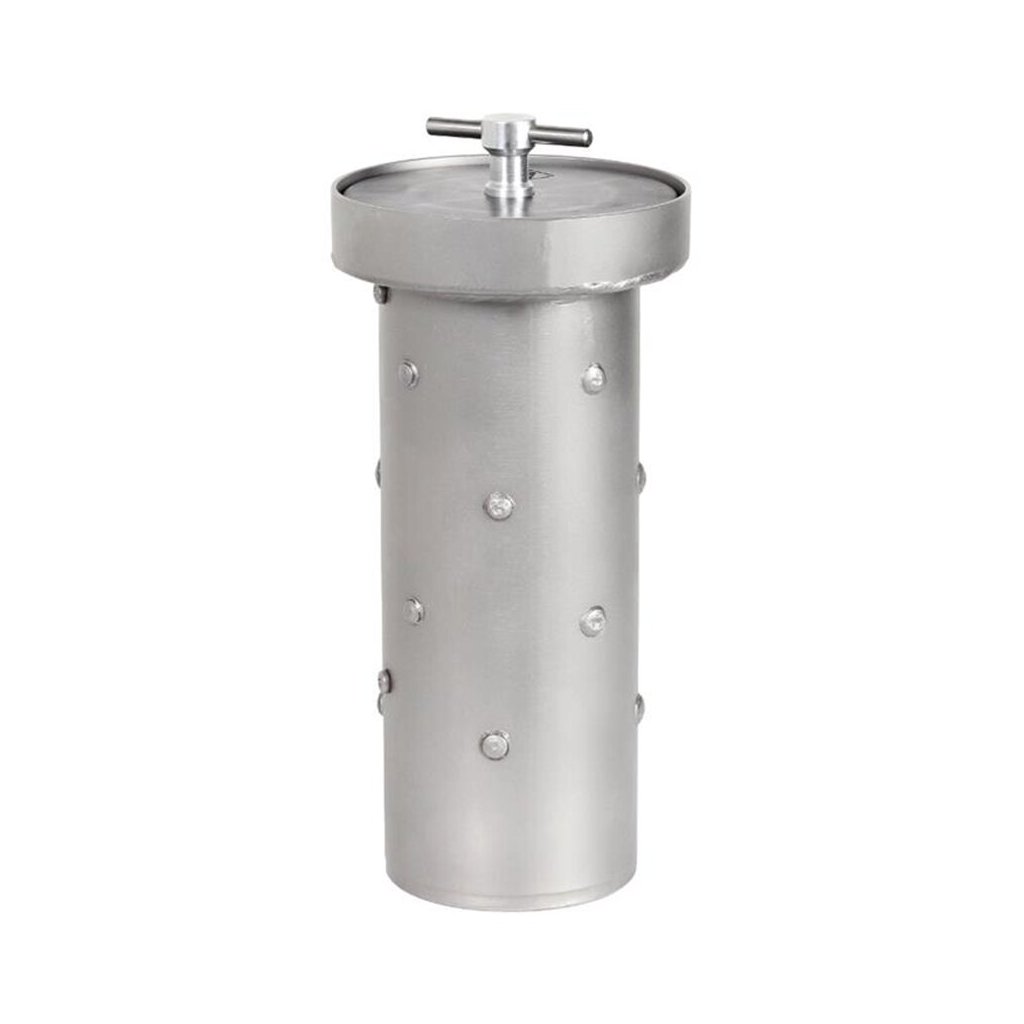

IKAR BASE FOR CONCRETE / X4010XX00
Base for core drilled hole in concrete. The inner part of the base is made of durable polyamide, guaranteeing easy turning of the crane and equipped with a connection to a drainage pipe for water removal. The base is fixed in concrete with non-shrink grout.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 160 x 335 mm (width x height)
Weight: 4.6 kg
EN 795 Type A • CEN/TS 16415

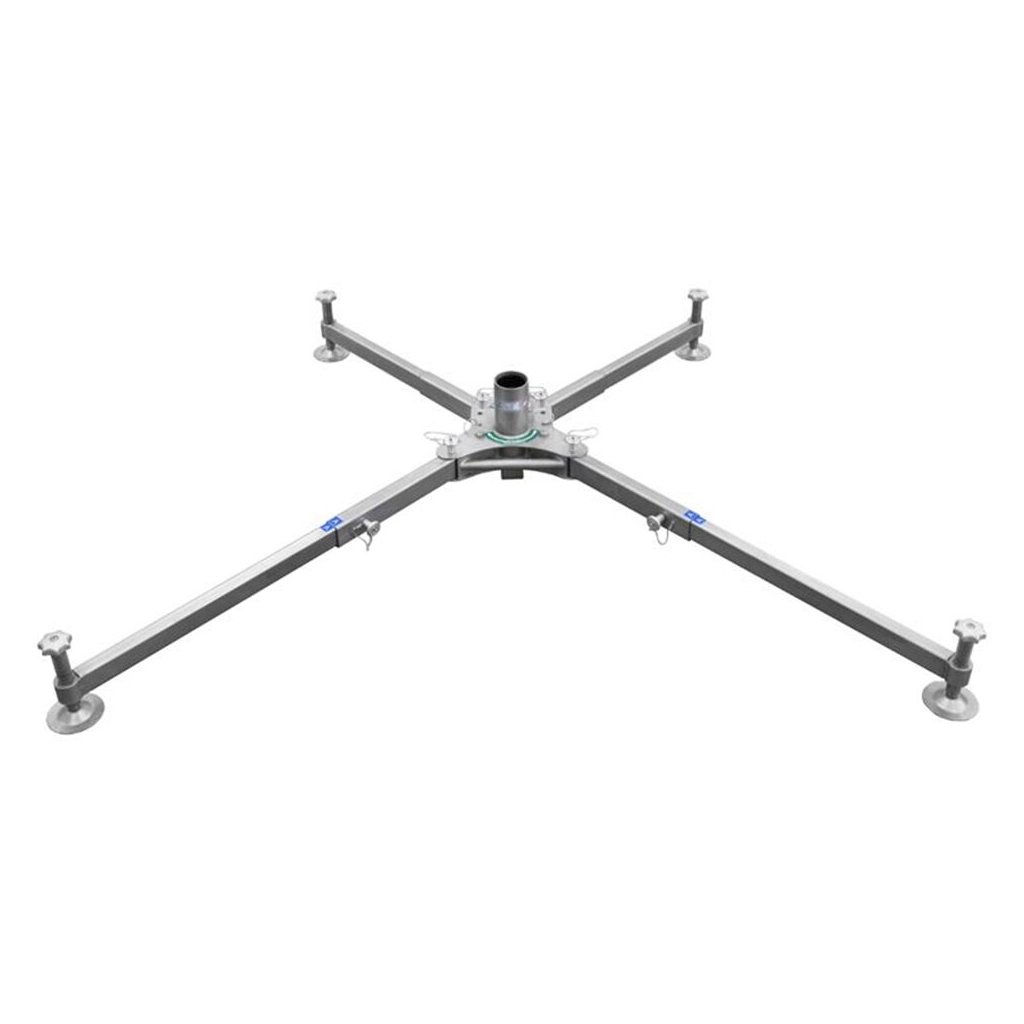

IKAR MOBILE BASE / X4011XX00
Separate base for quick and easy installation on free space. The base consists of a central crane mount and two pairs of front and rear height-adjustable legs that detach for transport. The inside of the slot for inserting the crane post is made of durable polyamide, which guarantees easy rotation of the crane in the range of 360°.
Material: stainless steel 1.4571 (V4A), PA
Dimensions: 1763 x 2228 x 450 mm (length x width x height)
Weight: central bracket 23.4 kg, front leg 8.1 kg each, rear leg 9.2 kg each
CE 0299 • EN 795 Type B • CEN/TS 16415
IKAR ATTIC BASE / X4012XX00
A base for attaching the crane to the top of a 200-400 mm thick attic or to the edge of a container. An ideal solution for places where frequent assembly and disassembly is required.
Material: stainless steel 1.4571 (V4A)
Dimensions: 350 x 729 x 335 mm (length x width x height)
Weight: 35 kg CE 0299 EN 795 Type B CEN/TS 16415 .pdf">
IKAR GAME 12-24 CRANE CONSOLE / X4013XX00

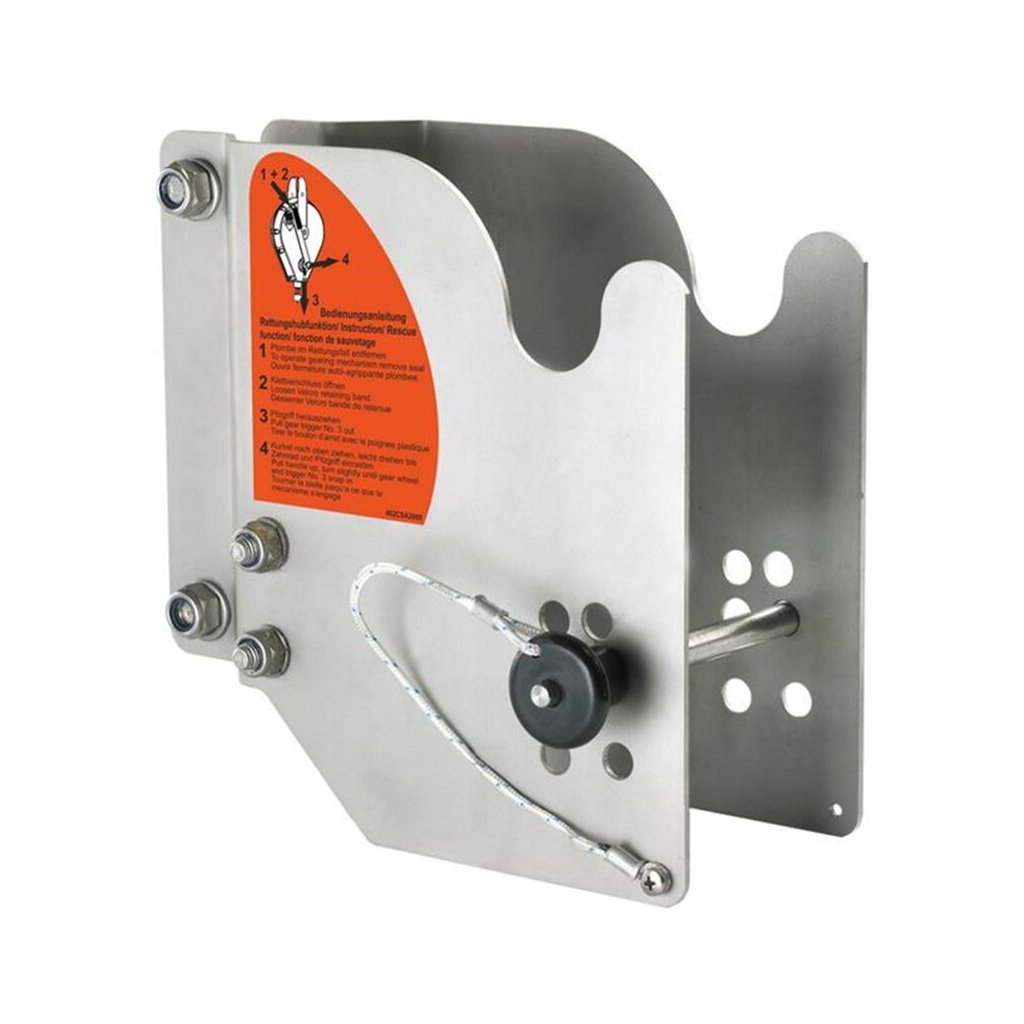

IKAR GAME 33 CRANE BRACKET / X4014XX00
Stainless steel bracket for connecting IKAR retractable fall arresters HRA with lifting function and lowering to the IKAR crane. It is screwed directly onto the crane post. The bracket is supplied with connection screws and a stainless steel fixing pin.
Material: stainless steel 1.4571 (V4A)
Dimensions: 264 x 162 x 250 mm (length x width x height)
Weight: 3.5 kg (5 kg HRA 33 version)

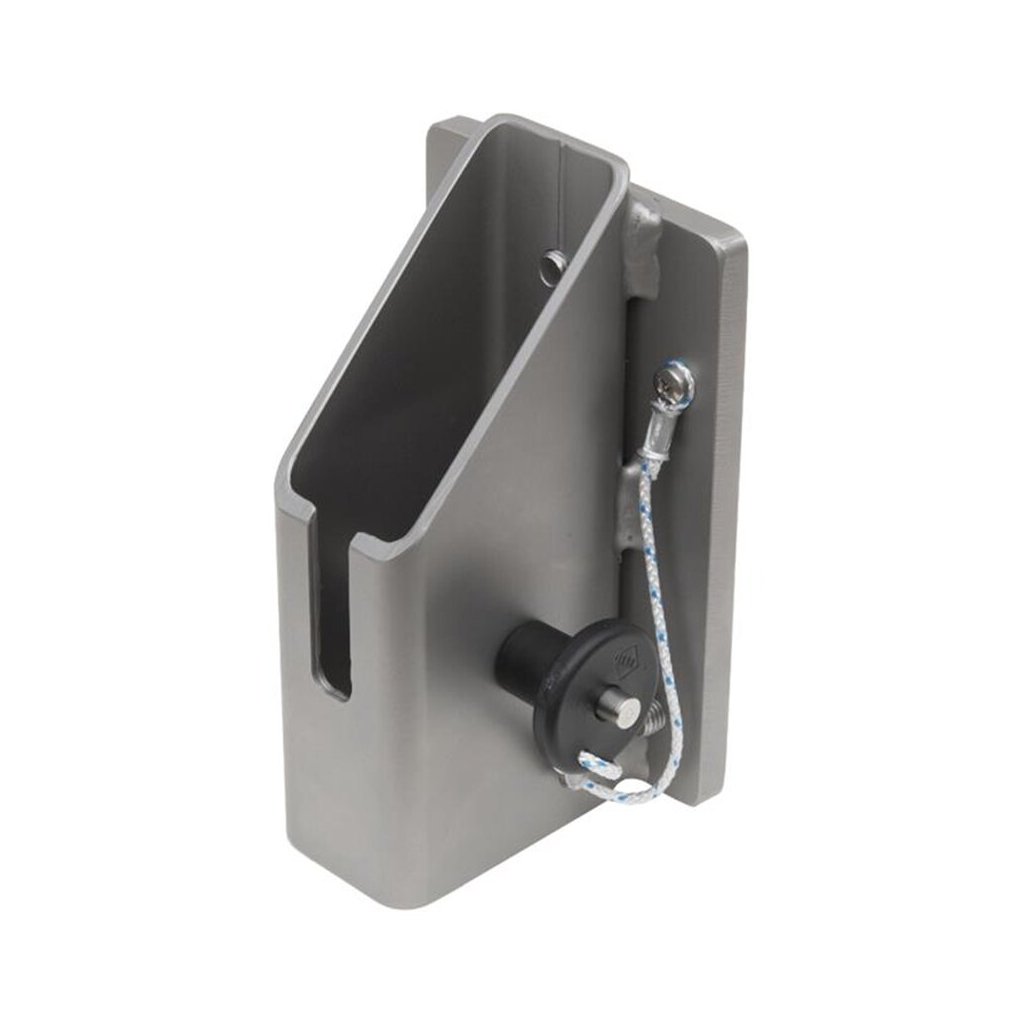

IKAR BRACKET FOR CRANE WINCH / X4015XX00
Aluminum alloy bracket to connect IKAR winch PLW to IKAR arm crane. The bracket is supplied including connection screws and a stainless steel fixing pin.
Material: aluminum alloy
Dimensions: 200 x 130 x 82.5 mm (length x width x height)
Weight: 2.4 kg
