PORTABLE WINCH gasoline engine winch PCW5000 1000kg
Code: PW-PCW5000
We deliver throughout Europe
We use DPD and PPL carriers.
Showroom
A brick-and-mortar store in Kolín where you can try out the equipment for yourself.
We ourselves work at heights
Since 2007, we have been engaged in arboriculture and height work. We use the equipment we sell ourselves.
Easy returns
Your satisfaction is our number one priority, and that's why we try to handle any complaints as quickly as possible and with the utmost care.
Product detailed description

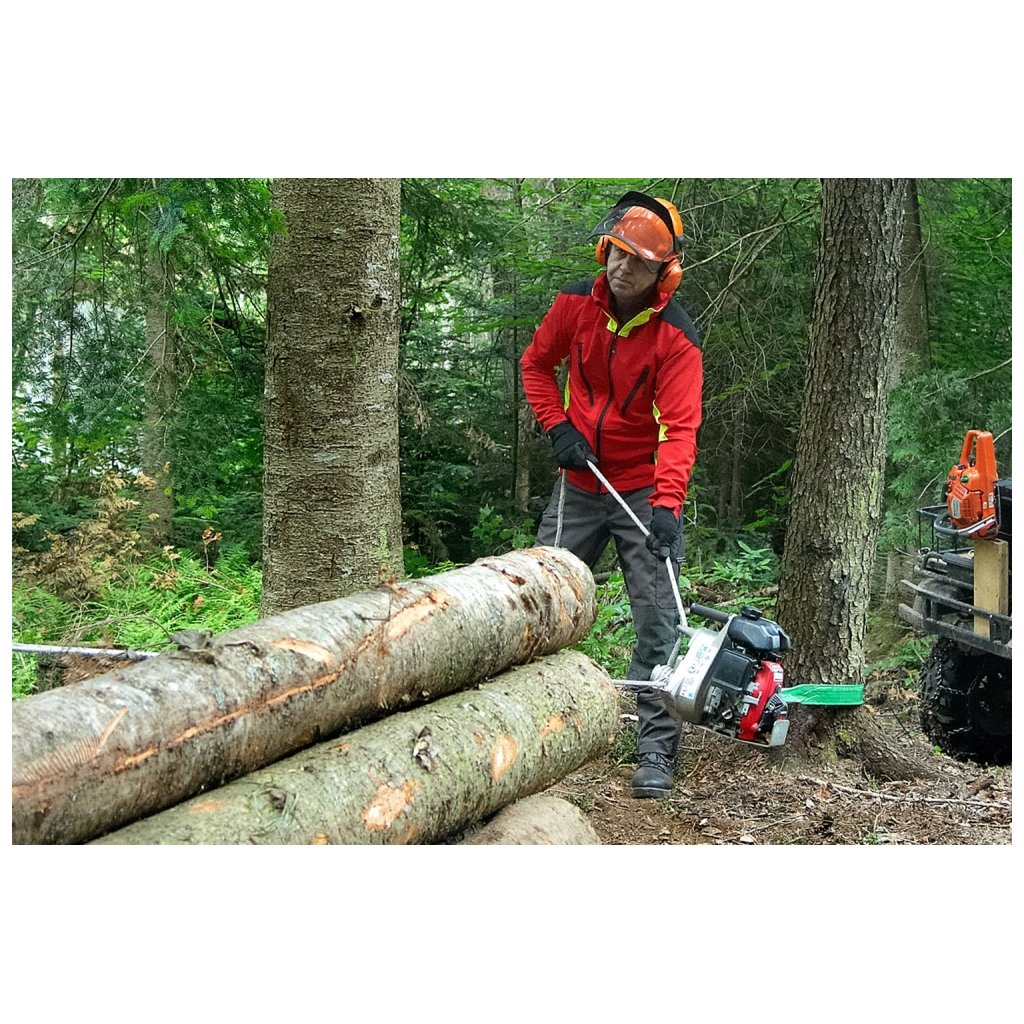

Portable gasoline motor winch which has a Honda 4-stroke GXH50ccm engine. The motorized winch PORTABLE WINCH PCW5000 is designed for pulling heavy loads, such as trees. It is therefore suitable for forestry work. The weight of this reel is 16kg and reaches a pulling power of 1000kg on one rope. It has great performance and two speed capability thanks to interchangeable drive pulley drums. If maximum performance is required, a standard 57mm drum is used which draws at a speed of 12m/minute. If it is necessary to achieve a higher winding speed, an 85mm drum is used, which pulls 700kg at a speed of 18m/minute. (not included)
The gearbox is made of aluminum alloy, the gears are 3-phase hardened, the shafts are mounted on ball bearings and lubrication takes place in an oil bath. The clutch bearing is without reverse gear.
The winch is supplied without oil filling. Oil needs to be topped up before first use.
Product parameters PORTABLE WINCH PCW5000 gasoline engine winch:
Engine: 4-stroke Honda GXH-50ccm
Maximum pulling power: 1000kg
Oil filling: 0.25l
Weight: 16kg
Gear ratio: 110:1
Dimensions: 37.1 x 36.6 x 36.6cm
Rope diameter: 10 - 16mm
Drive shaft drum: 57mm
Additional parameters
| Category: | Handling winches |
|---|---|
| Profese: | Arboriculture, Mining, Gardening and forestry, Tree climber |
| Type of equipment: | Handling winches |
