Product detailed description

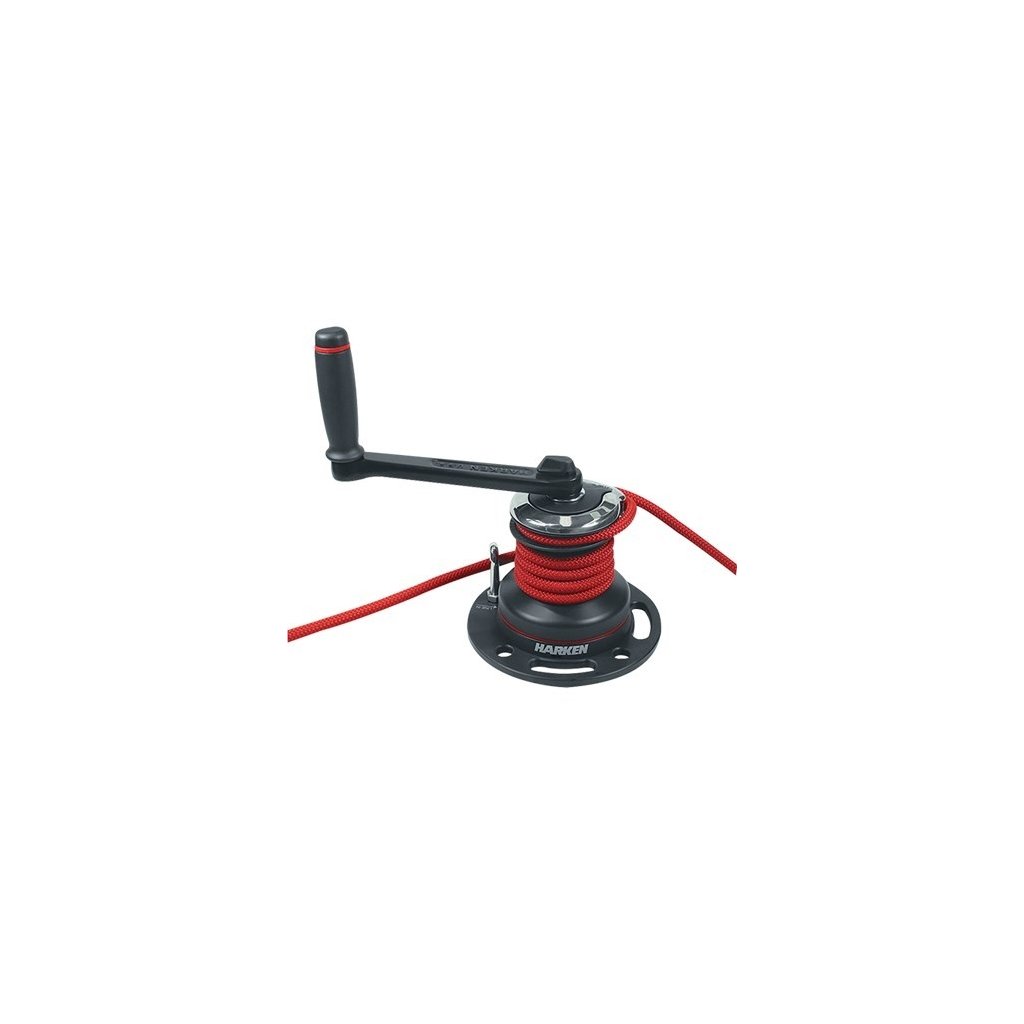

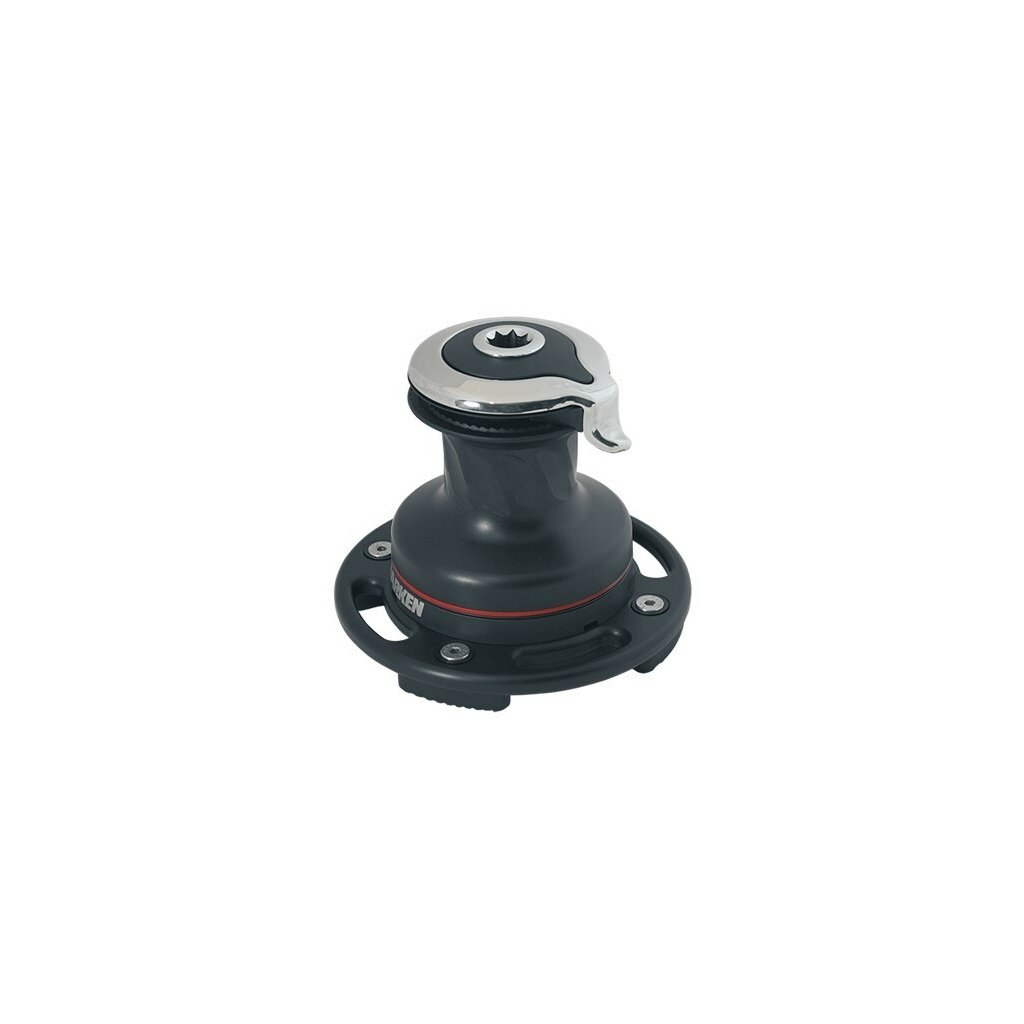

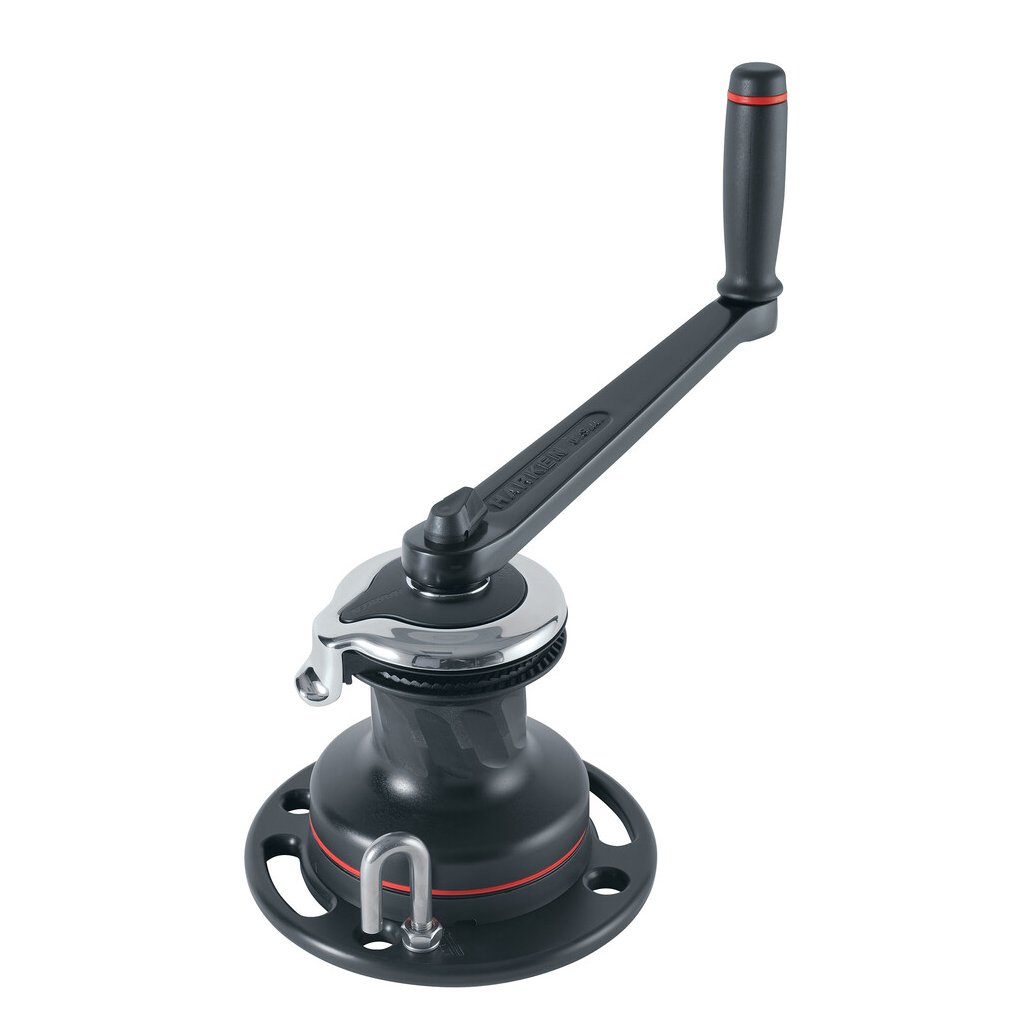

HARKEN TRACTION WINCH 200 is a specialized traction winch, designed for easy manual handling loads. This two-speed reel has a mechanical advantage of up to 20:1, which allows it to convert a force of 20 kg on the input to an impressive 400 kg on the output. It is supplied with a handle for convenient manual operation.
Its base with simple functional profiling facilitates installation on various structures, trees or hanging places. Alternatively, it is possible to control the winch with an electric or battery-powered angle drill using the HARKEN DRILL ADAPTER . The package includes the HARKEN ALUMINUM LOCK-IN 254mm long control handle included with this professional tool.
We also offer the HARKEN TRACTION WINCH 500 variant and a special certified evacuation winch for handling live persons - the HARKEN LOKHEAD WINCH.
Product parameters HARKEN TRACTION WINCH 200:
Rope diameter: 8-12 mm
Mechanical advantage: 20:1
Maximum input speed: 60 rpm
Weight of device: 4 kg
Maximum working load (WLL): 200 kg
Limiting load (MBS): 2000 kg
Certification: EN13157
Additional parameters
| Category: | Handling winches |
|---|---|
| Profese: | Arboriculture, Mining, Gardening and forestry, Tree climber |
| Type of equipment: | Handling winches |
