Product detailed description

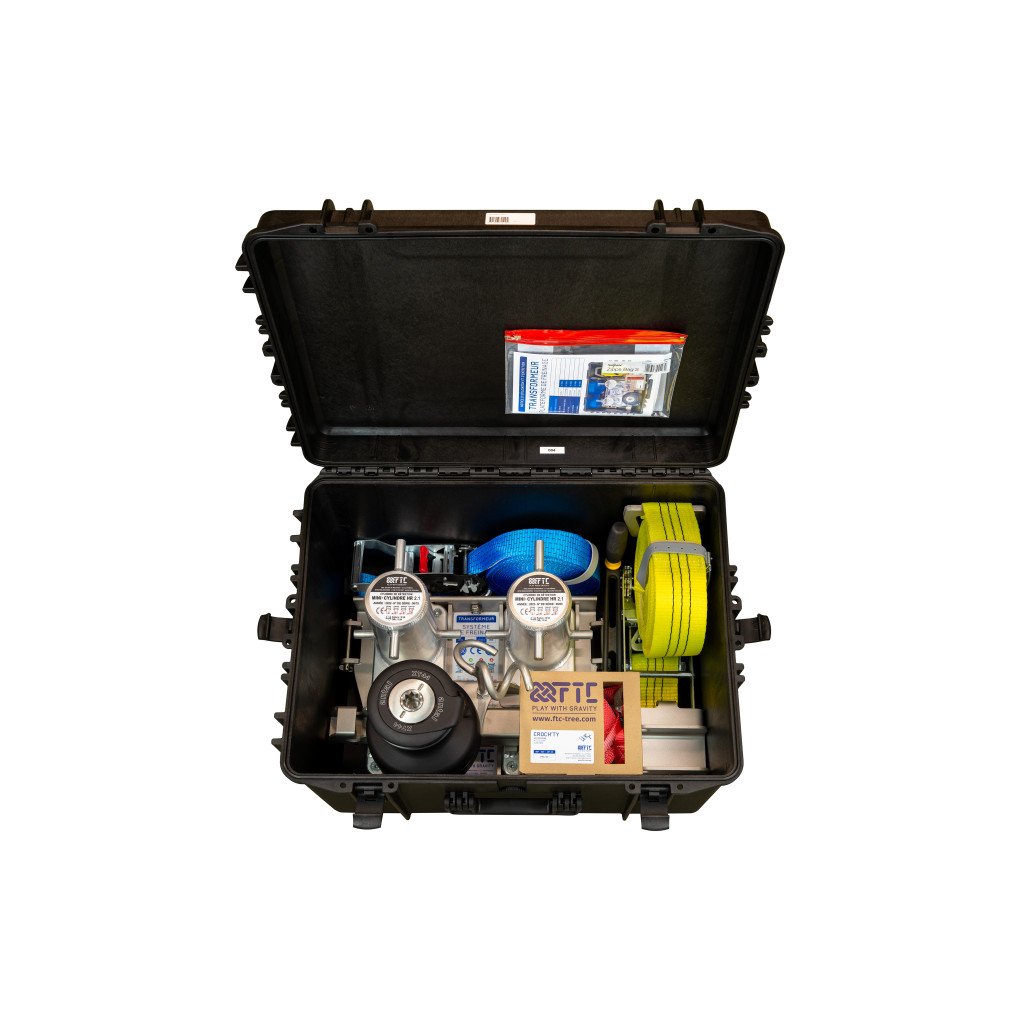

The TRANSFORMEUR is a friction system that you can adjust according to the work to be done. It comes with one or two MINI-CYLINDRES (HR or old version), with a winch as an option.
Set up your system according to your exact needs. The only limit is your imagination!
The TRANSFORMEUR can be configured 3 ways according to the kind of work to be performed: the more the rope is wrapped, the harder the friction. What’s more, the symmetry of the system allows left or right location of the ground crew depending on the worksite restrictions.
| Machinery Directive | 2006/42/CE |

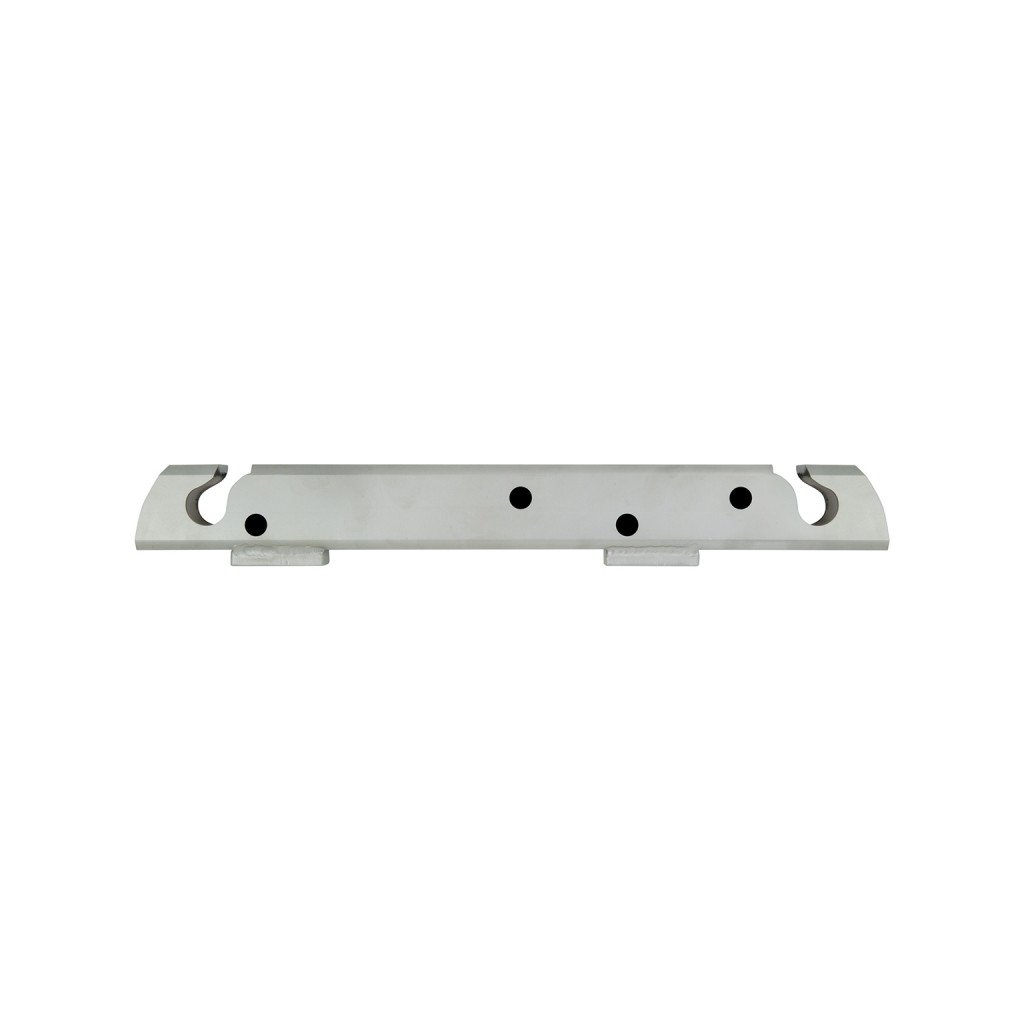

| Steel supports material | Supports are in 304L stainless steel (main plate, tubes and anchoring triangles, mono plate and winch plate). |

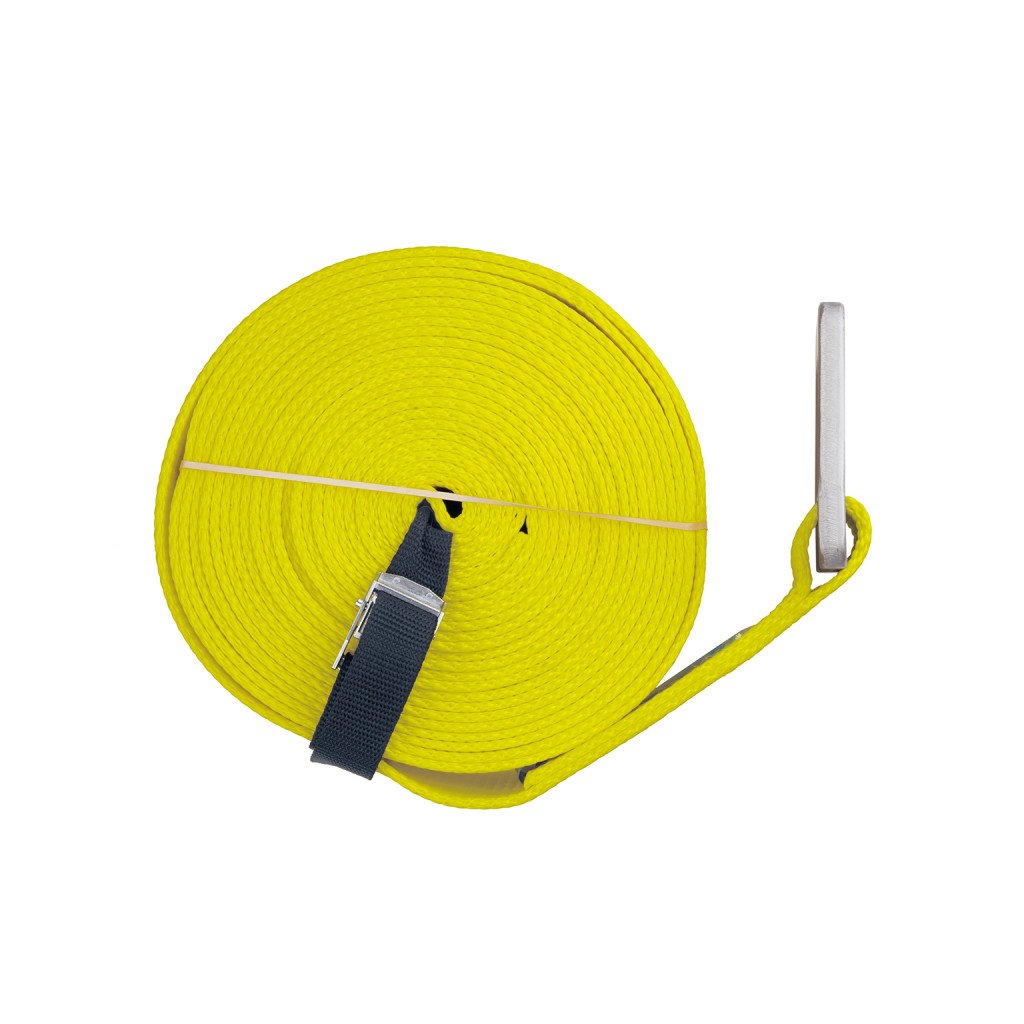

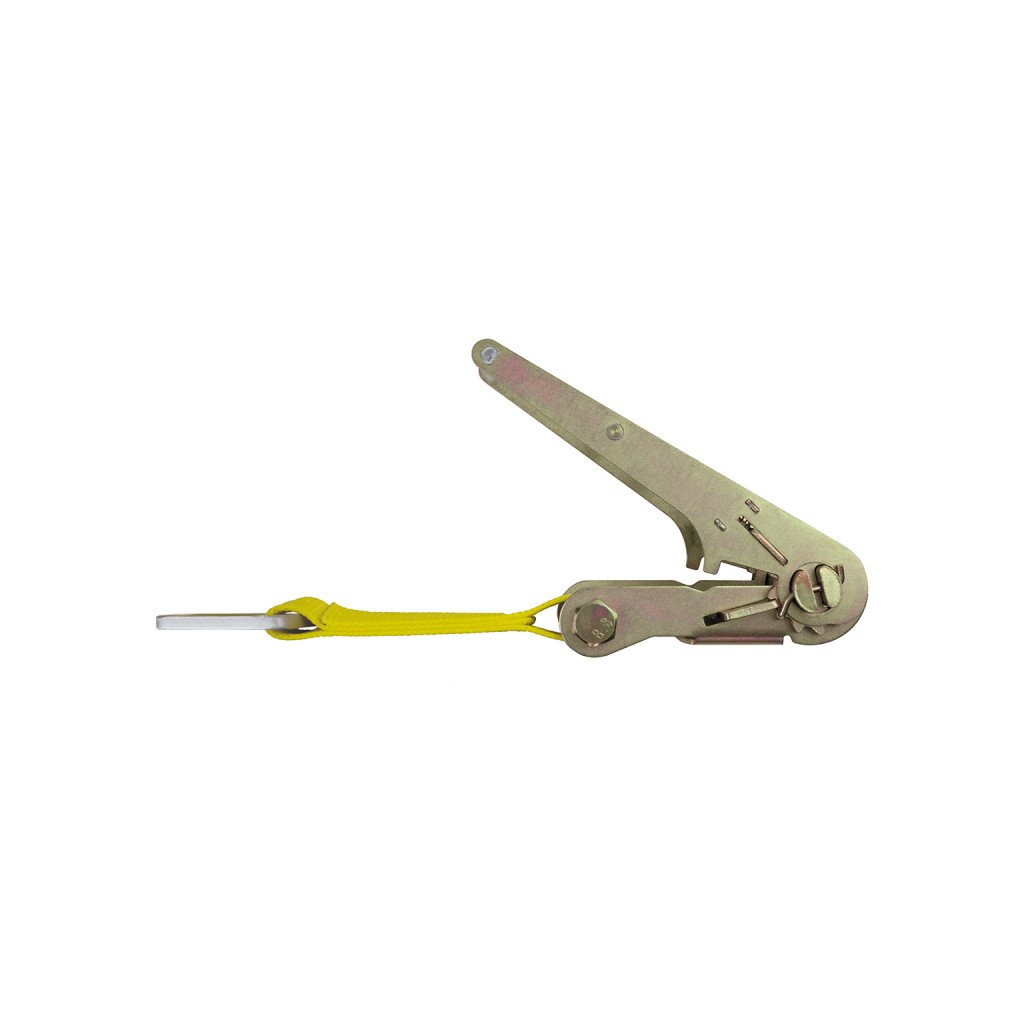

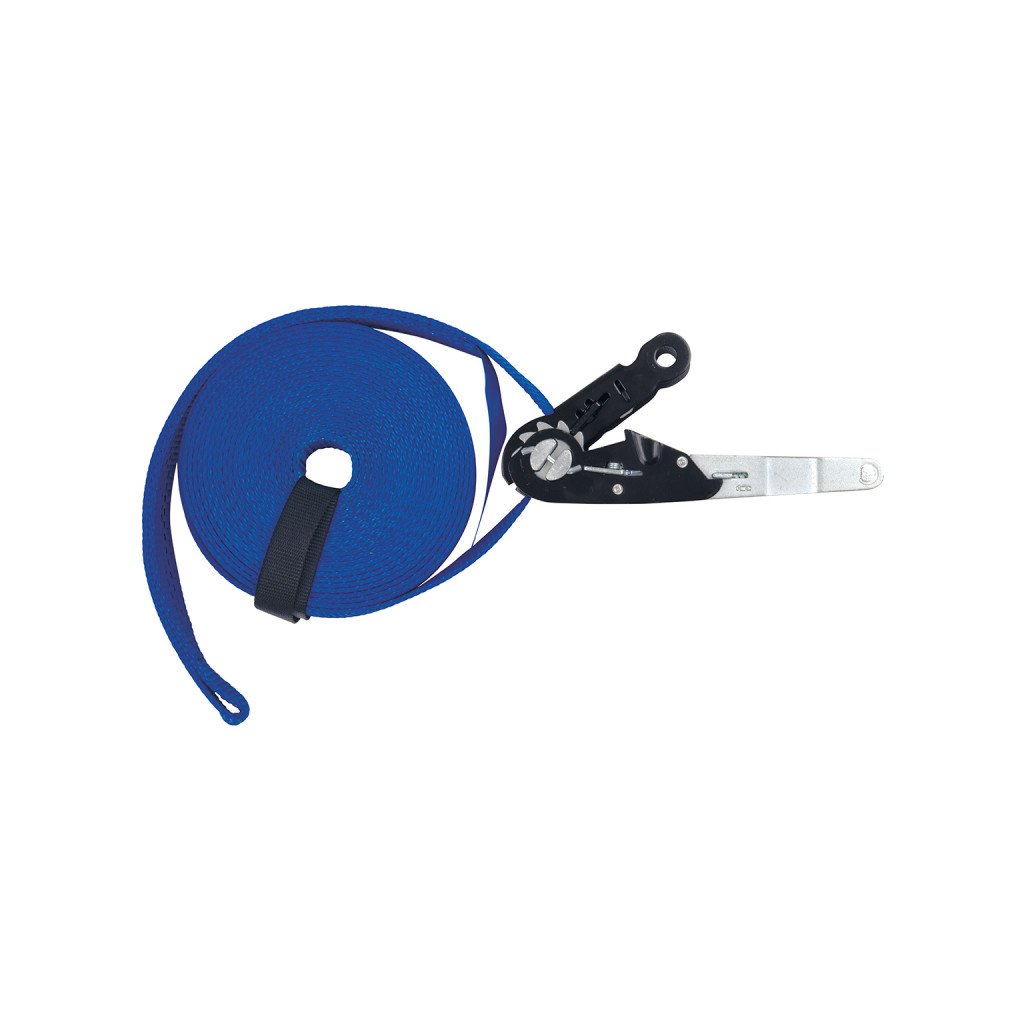

| Straps material | - Yellow main anchoring strap (lower): 100 % polyester, 9 m (29.52 ft), 15,000 daN MBS with ratchet (10,000 daN MBS) - Blue secondary strap (upper): 100 % polyester, 9 m (29.52 ft), 7,000 daN MBS with ratchet (5,000 daN MBS) |

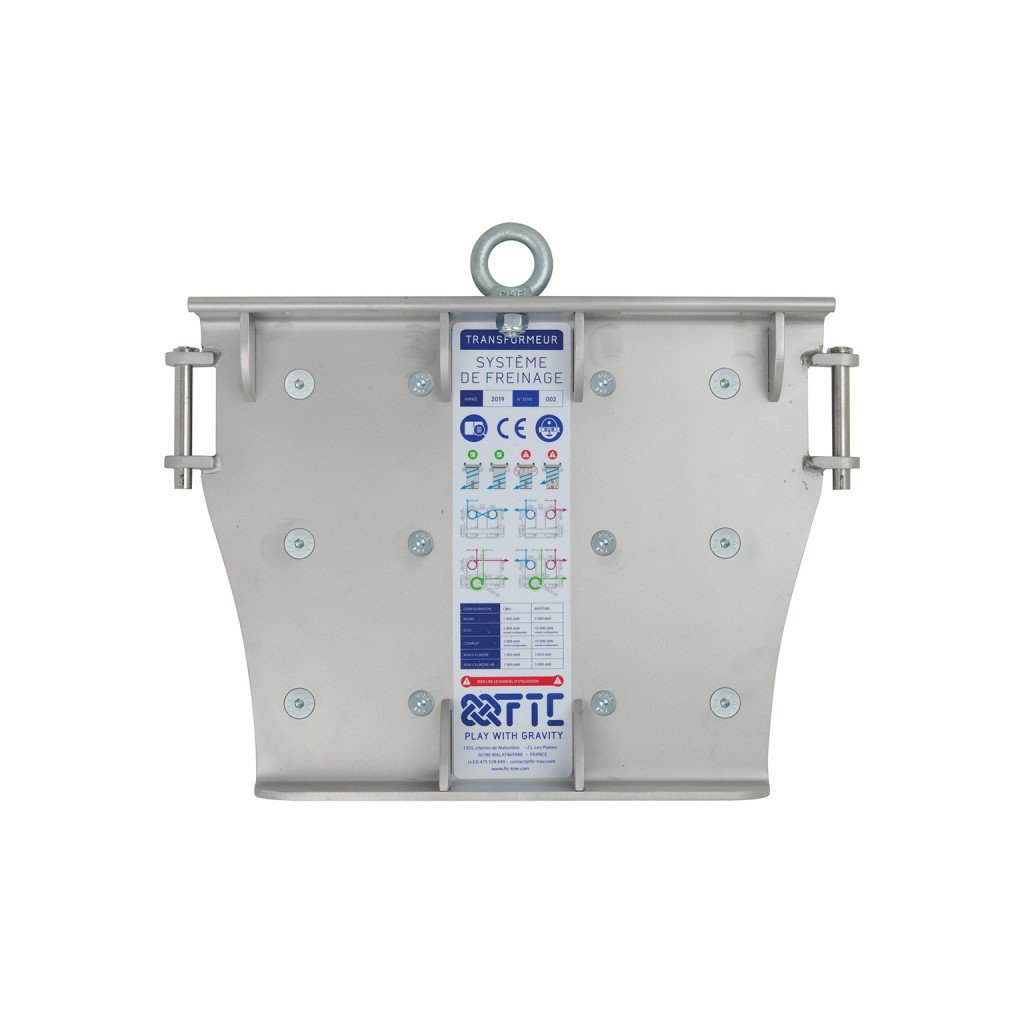

| Main plate | 450 mm x 370 mm (17.71 in to 14.56 in)Upper lifting ring (DIN 580) the make attaching the plate easier by using the CROCH'TY (included) |
| Mini-Cylindre HR friction devices | in aluminium (the plate is compatible with the older generation MINI-CYLINDRES) |
| Manual winch and handle | Winch 44 TX |
| MBS | 100 kN / WLL: 20 kN (depending on configuration) |
| Diameters of ropes that can be used | 12 mm to 18 mm (0.47 in to 0.70 in) |
