FTC MICRO-CYLINDRE 2.1
Code: FTC/MCC-C2.1
We deliver throughout Europe
We use DPD and PPL carriers.
Showroom
A brick-and-mortar store in Kolín where you can try out the equipment for yourself.
We ourselves work at heights
Since 2007, we have been engaged in arboriculture and height work. We use the equipment we sell ourselves.
Easy returns
Your satisfaction is our number one priority, and that's why we try to handle any complaints as quickly as possible and with the utmost care.
Product detailed description

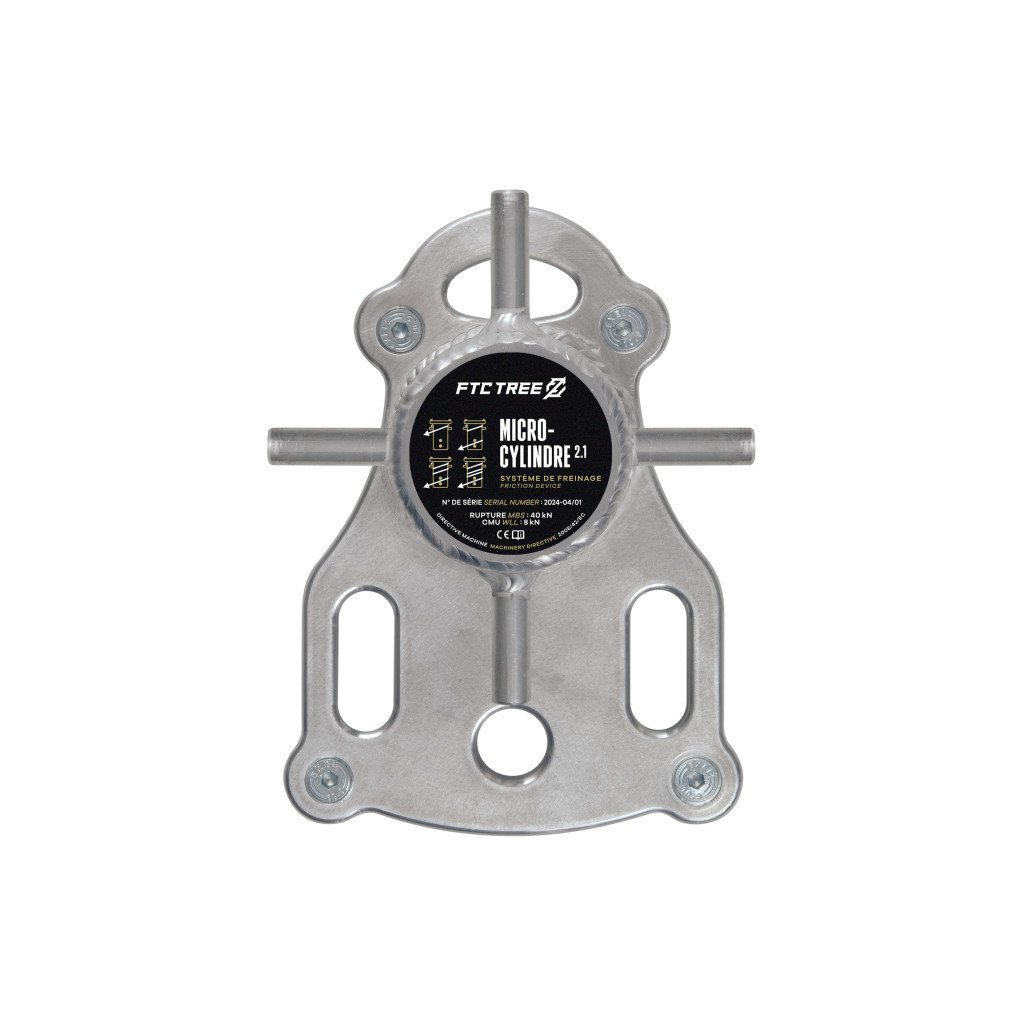

MICRO-CYLINDRE 2.1 from FTC is a friction device for rigging rope used in tree care work. It's a rope friction device used in minor felling operations to hold and lower cut branches or logs.
This is the most compact and lightweight friction system in its category. Made entirely of aluminium, the Micro-Cylindre doesn't heat up or burn ropes. The rubber bumpers keep it stable. It is a smart choice to add to existing FTC lowering devices.
The round ring on the top allows for reeving, and two fairleads at the tip of the cylinder keep the rope wraps in place and prevent overlapping. The symmetrical design allows a worker on foot to stand to the right or the left.
| Machinery directive | 2006/42/CE |
| Maximum Ø of rope allowed | 14 mm |
| MBS | 40 kN - WLL : 8 kN |

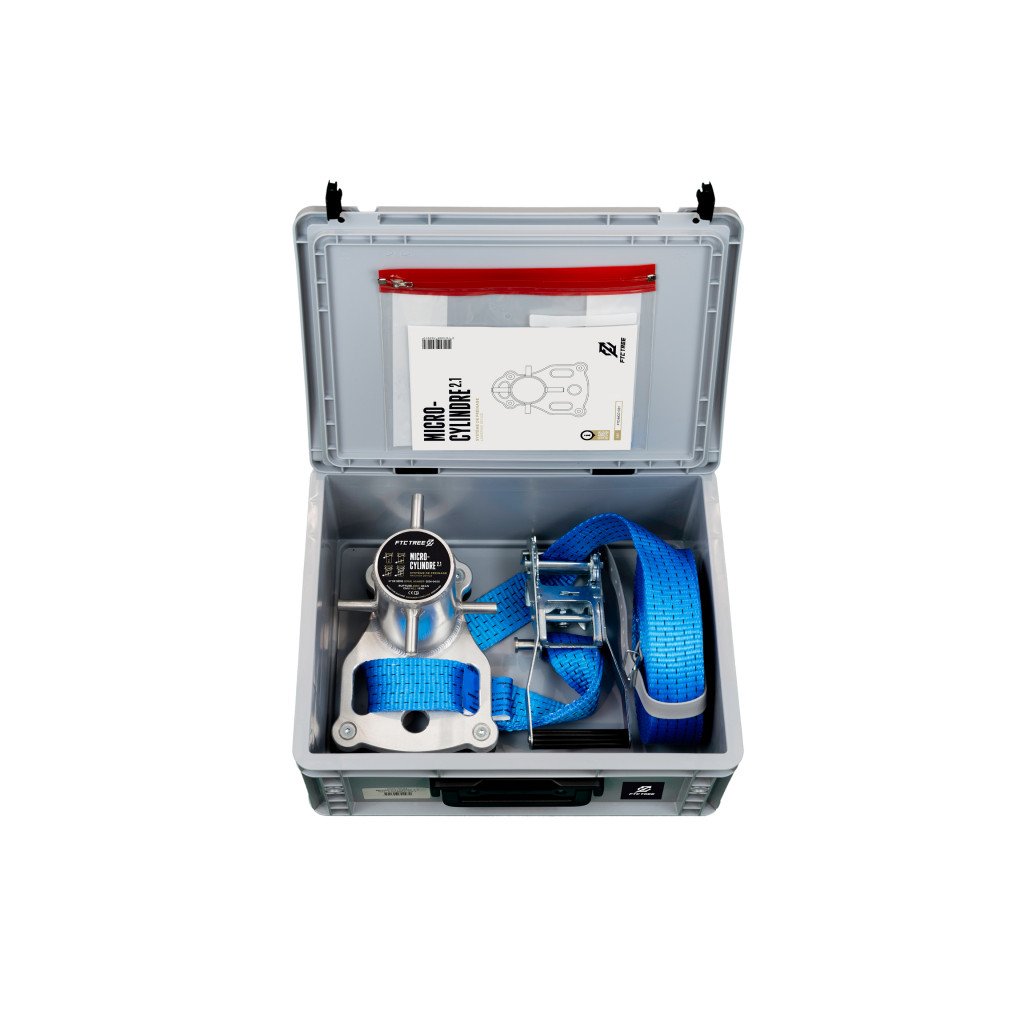

| Weight | 1.7 kg (4,9 kg with strap and transport box) |
| Plate | 225 mm high, max 165 mm wide, 15 mm thick |
| Cylinder Ø | 75 mm |
| Straps | 9 m (25.5 ft) (for trees up to diameter 2 m - 6.6 ft) |
| Box | 30 cm x 40 cm - 19.5 cm high (11.8 in x 15.77 in - 7.7 in high) |
-
Návod k použití - FTC spouštěcí buben MICRO-CYLINDRE 2.1 (4.9 MB)
-
Prohlášení o shodě - FTC spouštěcí buben MICRO-CYLINDRE 2.1 (183.7 kB)
