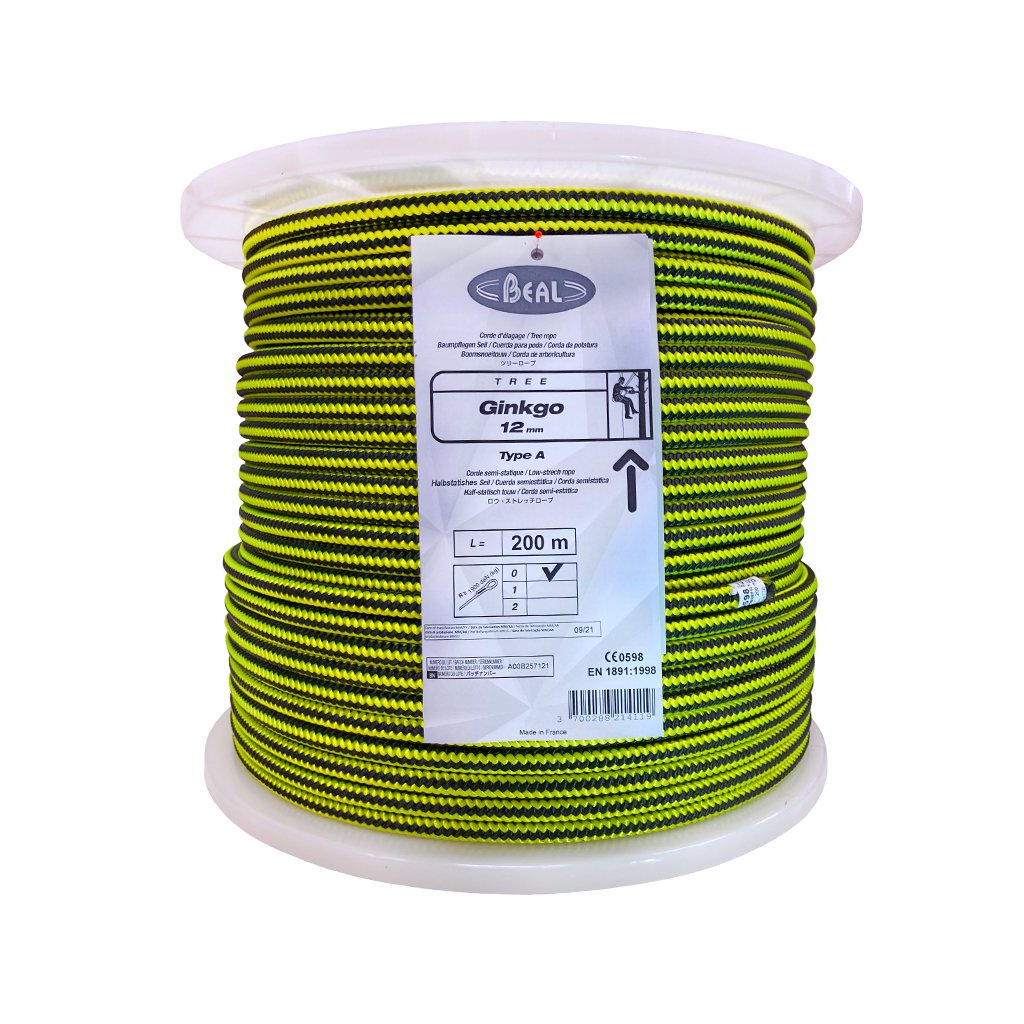

BEAL Ginkgo
Code: BCSE12.200Product detailed description
Light arborist rope type A with a thickness of 12 mm, which is characterized by high strength, low weight and easy handling. A glue-free method is used to connect the core and the braid, but even so, movement of the braid relative to the core is prevented. On order with the option of sewn strength eye on one or both ends of the rope. 3, 4, and 5m ropes are available, or ropes from 20m to 60m.
Properties:- Certification as type A rope
- Arboristic rope
- Possible termination with sewn termination (Sewn Terminator)
- a>
Parameter table:
Standard | EN 1891 |
Certification | CE |
Rope type< /td> | A |
Min. strength | 27.00 kN |
Min. strength with 8 knot | 16.00 kN |
Min. 9 knot strength | - |
Strength with stitched eye | 22.00 kN | Number of falls (fall factor 1) | min. 8 |
Impact force (fall factor 0.3) | 5.7 kN |
Elongation | 4.0% |
Braid displacement | 0% |
Weight | 92 g/m |
Braid ratio | 69% |
31% | |
Coagulability | 2.8% |
Material | braid: Polyester core: Polyamide |
Additional parameters
Category: | Low tensile ropes |
---|---|
Color: | yellow |
Lenght (m): | 200 |
Diameter (mm): | 12 |
Type of rope: | A |
Type of equipment: | Low tensile ropes |
Certification: | EN 1891 A |
