ATD launch drum with winch WINCH
Code: GT46-2
We deliver throughout Europe
We use DPD and PPL carriers.
Showroom
A brick-and-mortar store in Kolín where you can try out the equipment for yourself.
We ourselves work at heights
Since 2007, we have been engaged in arboriculture and height work. We use the equipment we sell ourselves.
Easy returns
Your satisfaction is our number one priority, and that's why we try to handle any complaints as quickly as possible and with the utmost care.
Product detailed description

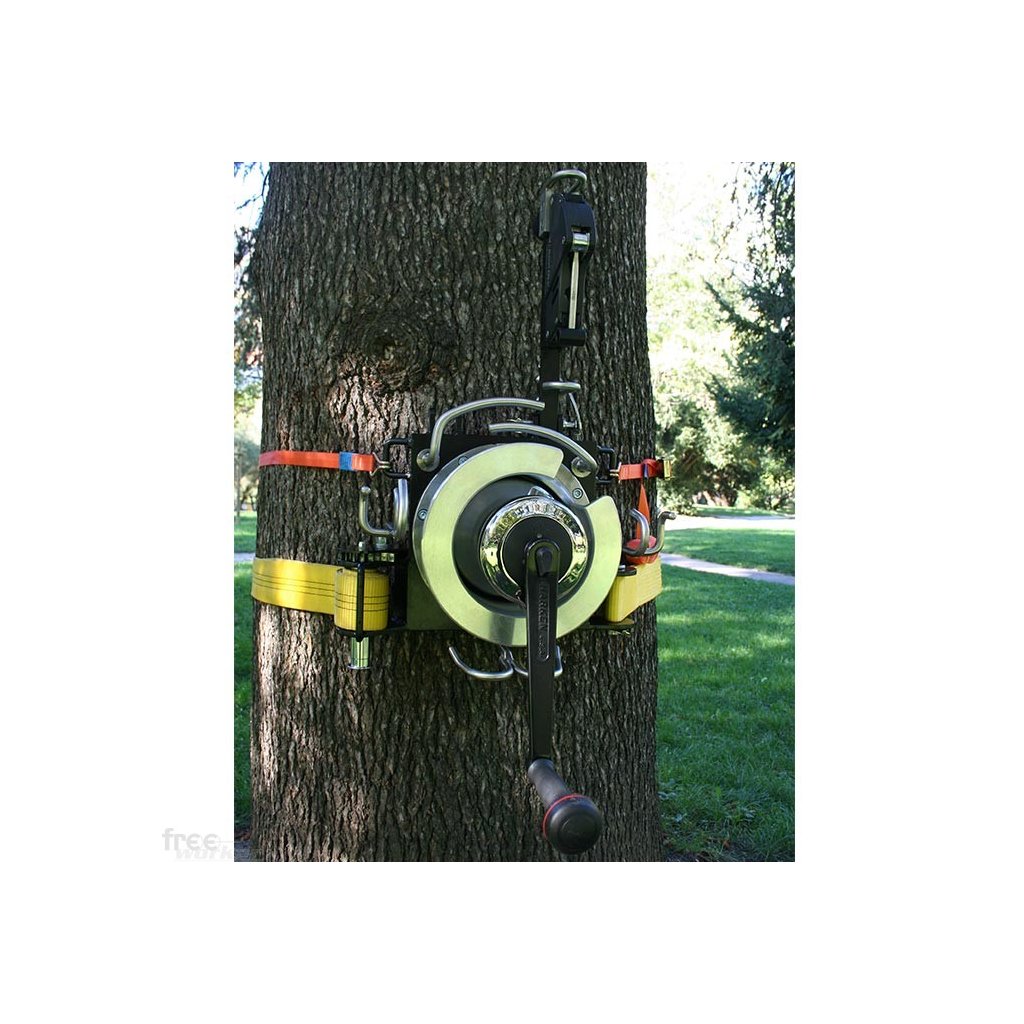

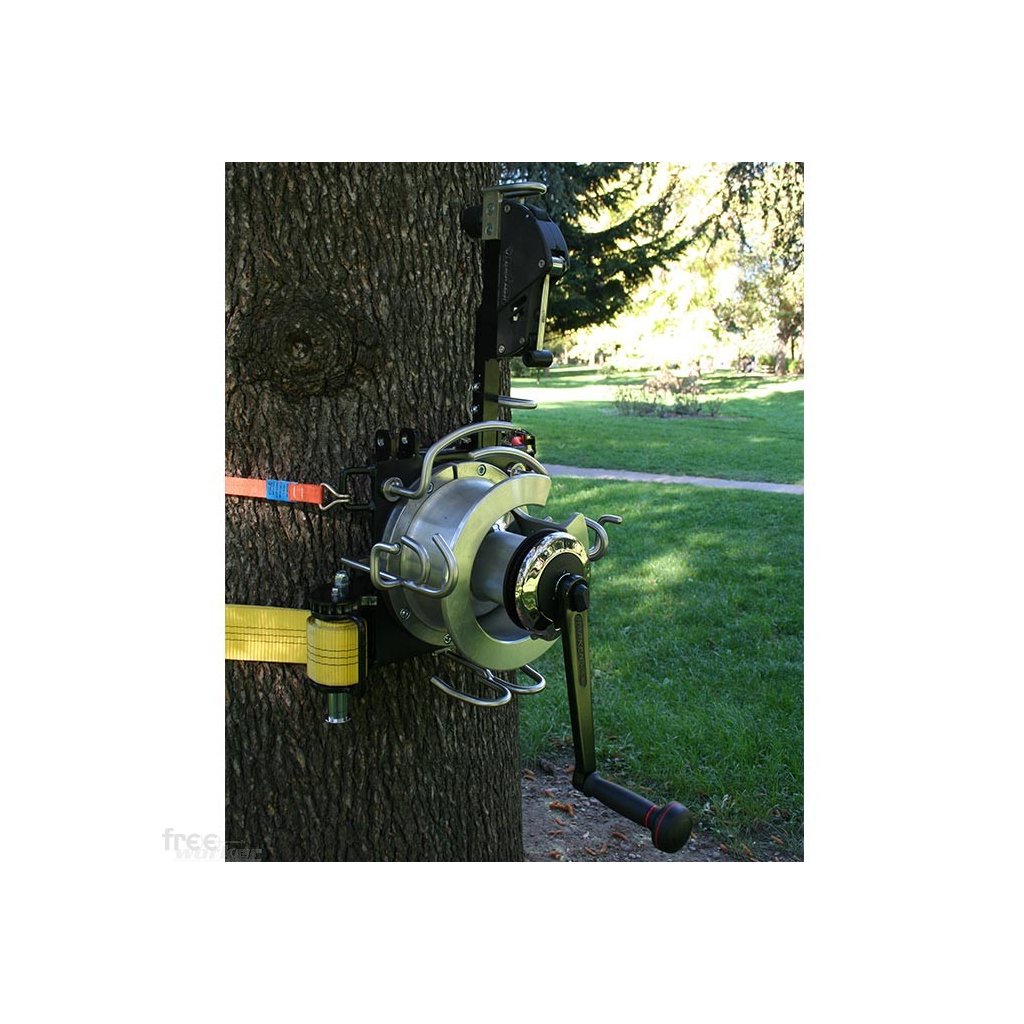

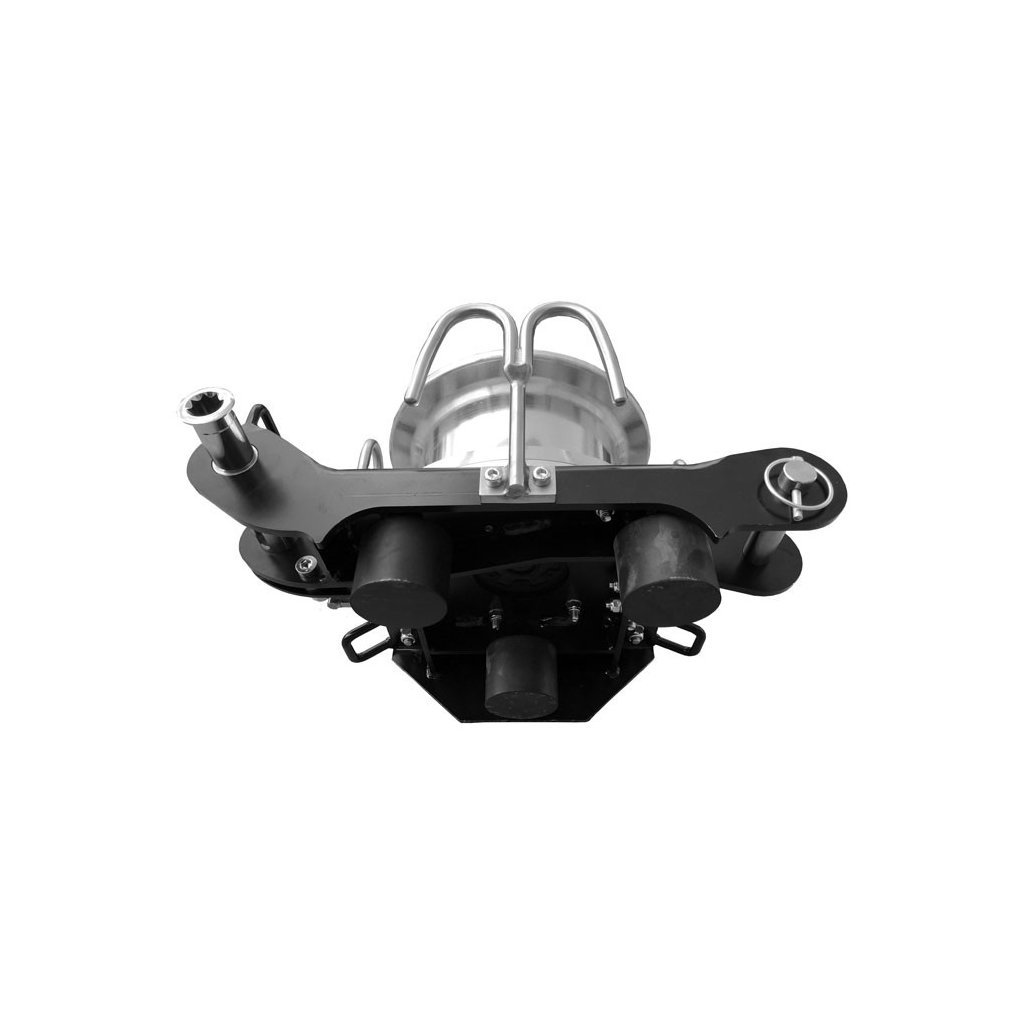

Compact two-speed trigger drum with winch which is intended for gradual felling of trees or for lowering heavy loads. The lowering drum with the winch ATD WINCH is fixed to the tree trunk using textile straps that ensure the fixation of the drum. ARD WINCH is made up of one inner drum which serves as a winch for lifting and pulling loads. The second outer drum is designed for lowering the load. For easy and safe handling of the rope between the two drums, a locking brake is used, which is attached to the drum. The outer drum can also be used independently without a winch and a locking brake.

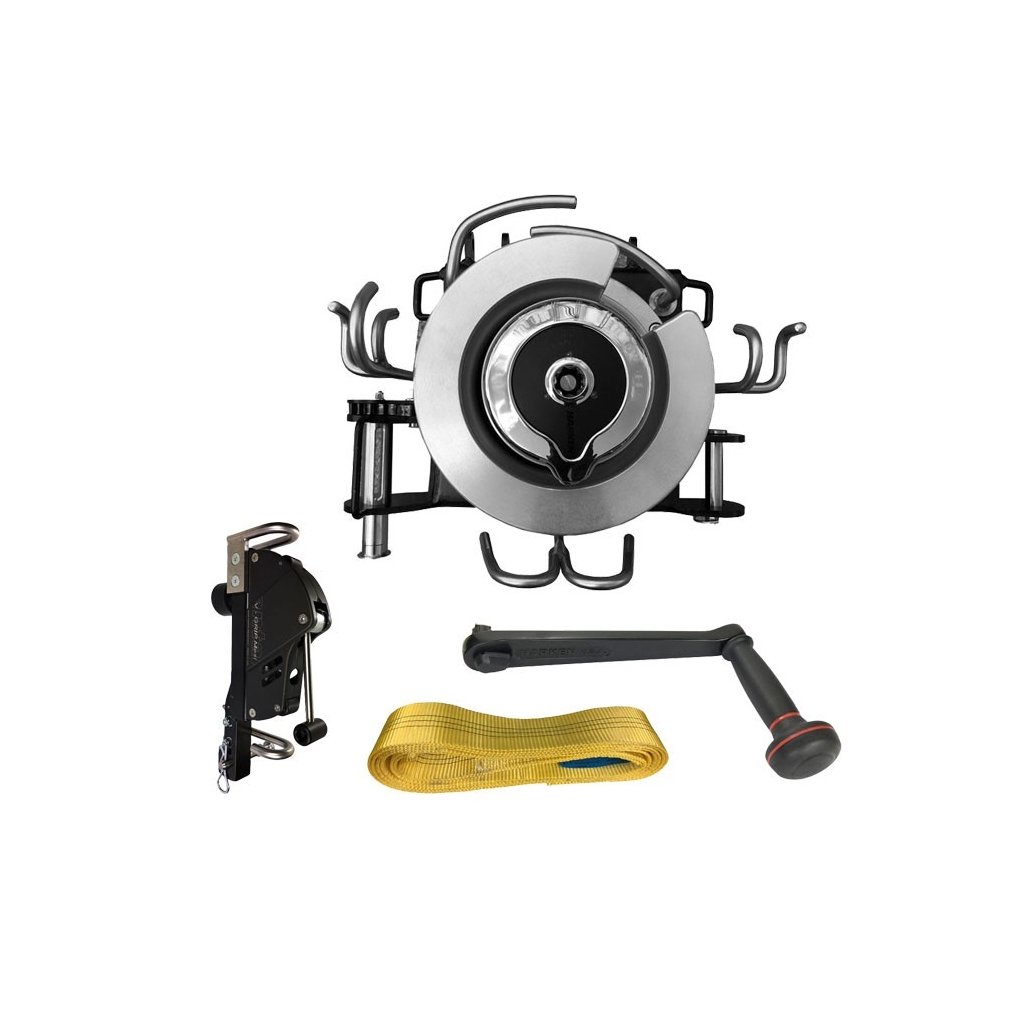

The winch includes:
1x ATD WINCH
1x 75mm strap
1x 25mm strap
1x locking brake
1x lever

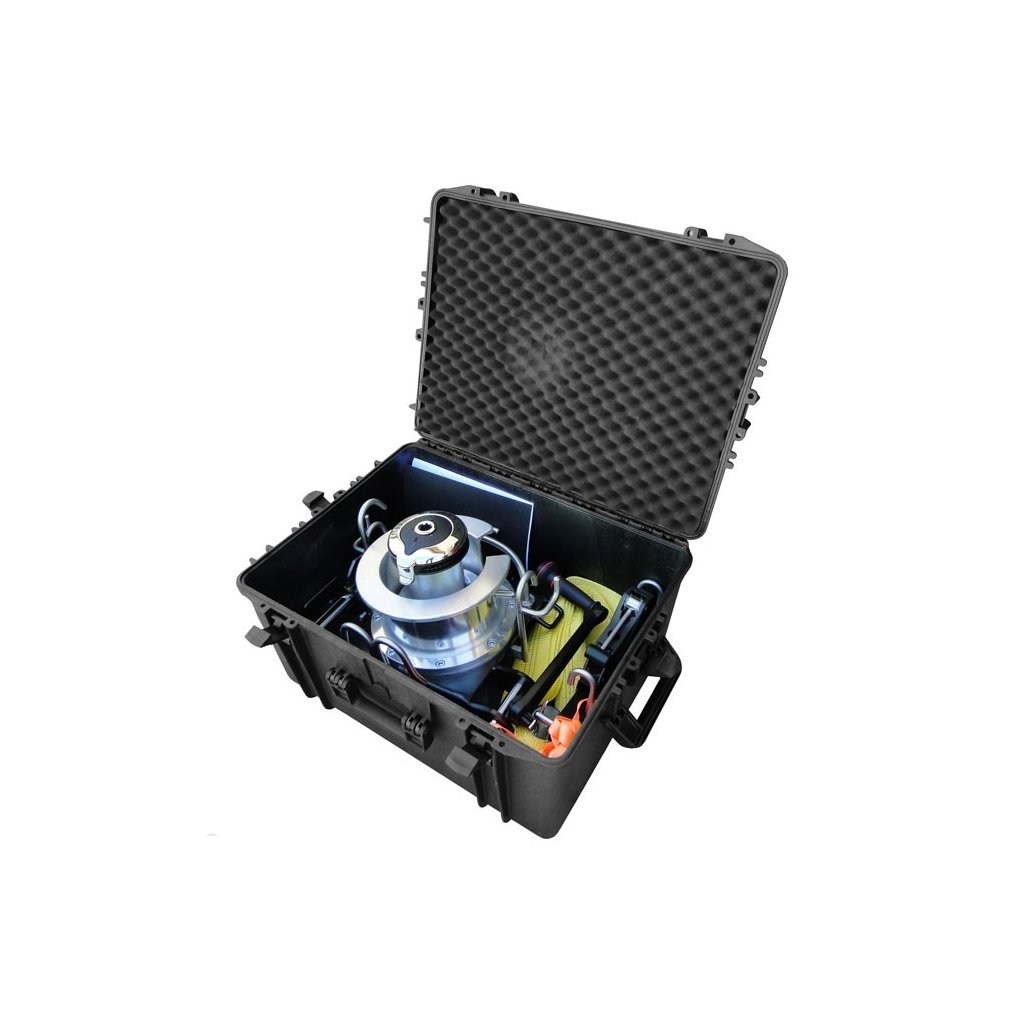

1x transport case
Product parameters ATD starting drum with winch WINCH:
Drum material: brass (inner drum), aluminum (outer drum)
Total weight: 30.3kg
Total working load: 1300kg
Weight of parking brake: 4.7kg
Strength of 75mm strap: 15,000kg
Strength of 25mm strap: 400kg
Rope diameter for winch and parking brake: 14- 16mm
Rope diameter of the outer drum itself: 12-19mm
Additional parameters
| Category: | Launching anchors and drums |
|---|---|
| Profese: | Arboriculture, Tree climber |
| Type of equipment: | Lowering anchors and drums |
