ACCEN anchor point TRAX PW II
Code: ACCEN-414 ACCEN-416 Choose variant
We deliver throughout Europe
We use DPD and PPL carriers.
Showroom
A brick-and-mortar store in Kolín where you can try out the equipment for yourself.
We ourselves work at heights
Since 2007, we have been engaged in arboriculture and height work. We use the equipment we sell ourselves.
Easy returns
Your satisfaction is our number one priority, and that's why we try to handle any complaints as quickly as possible and with the utmost care.
Product detailed description

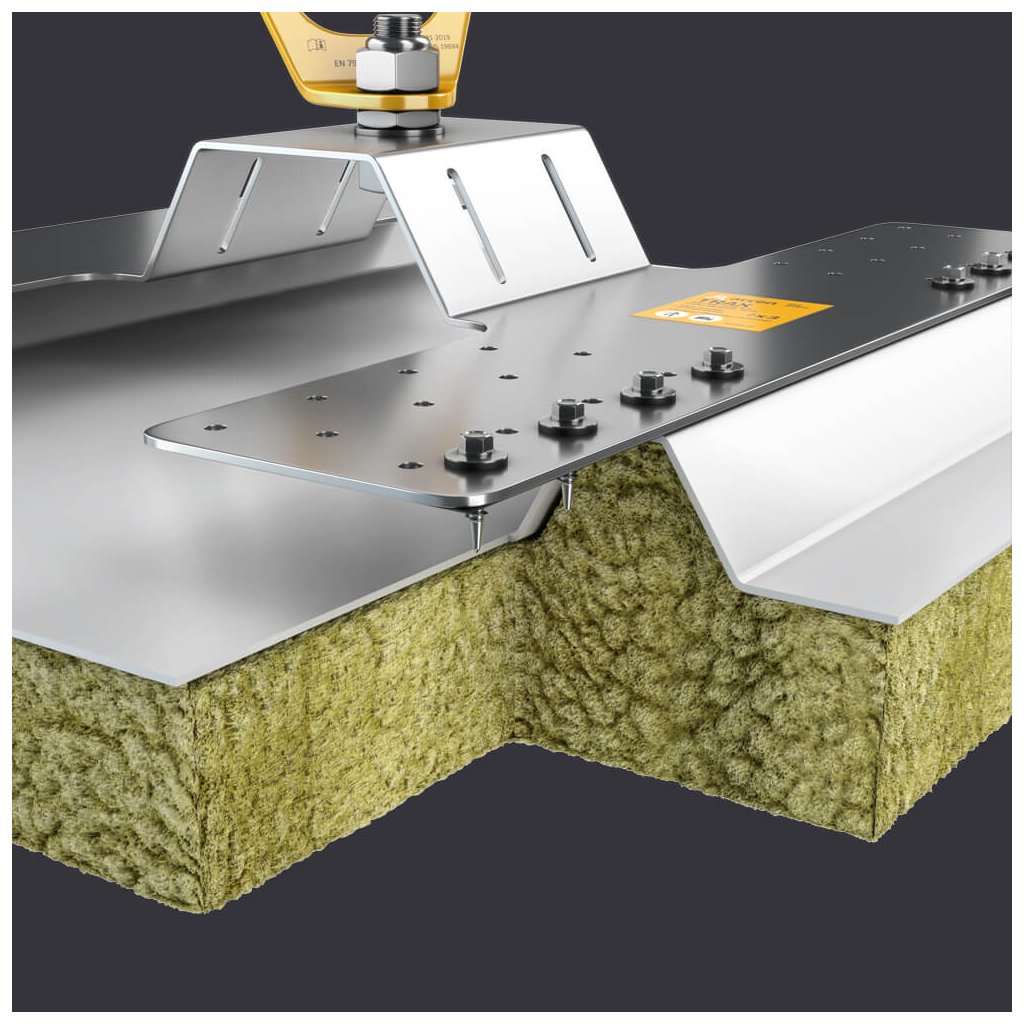

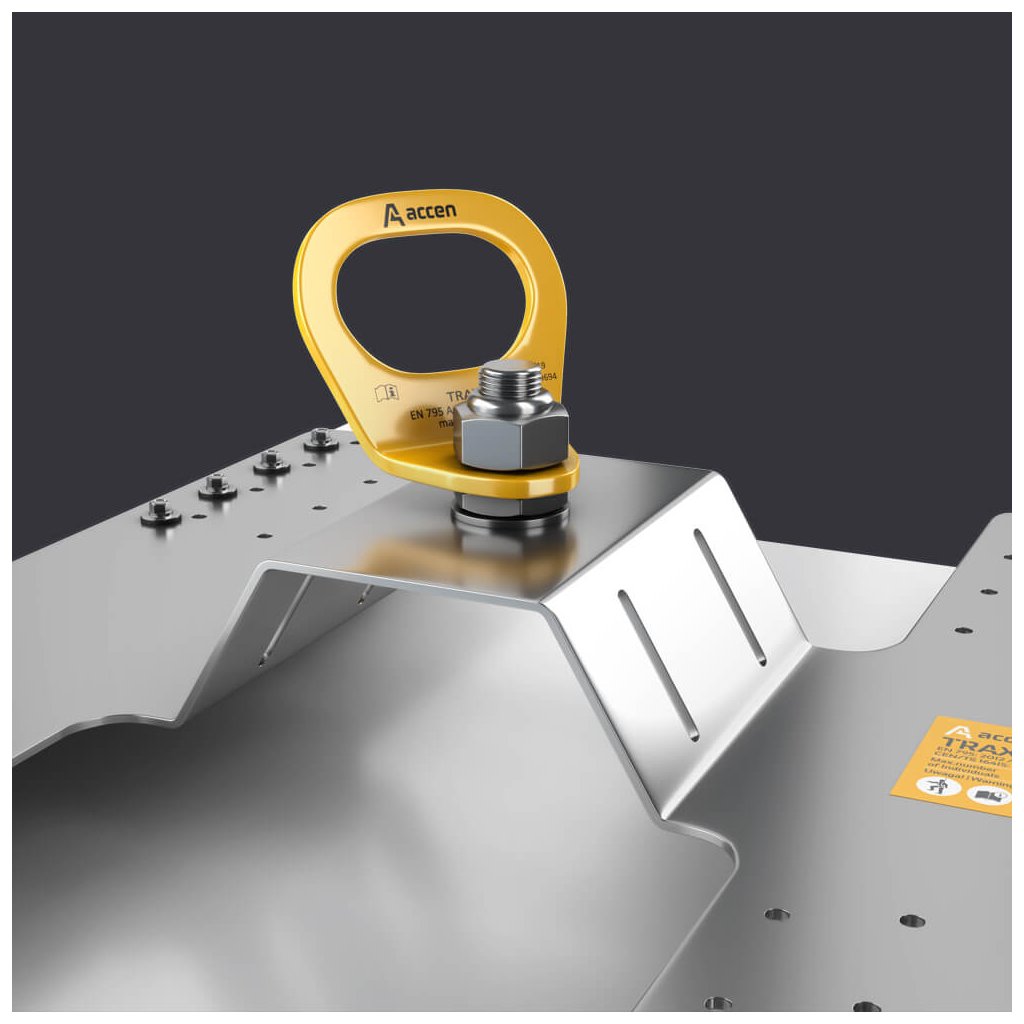

An anchoring device that is designed to be mounted on a trapezoidal sheet, a sandwich panel. Assembly is carried out by one of two types of connecting elements depending on the thickness of the trapezoidal sheet: 1 – sheet with a min. thickness 0.5 mm 16 rivets RV6604/6/4W BULB-TITE with a pad with sealing rubber EPDM, 2 – sheet with min. thickness 0.7 mm 16 pcs of self-tapping TEX screws 6.3 x 25 with gasket. A safety eye is mounted on the upper part of the anchor point, which is painted yellow for better orientation. The eye allows rotation around its axis in the range of 360° and thus allows work in all directions. Thanks to this, it prevents the formation of loops in the event of connecting safety devices. up to three people at the same time can connect to the point using personal protective equipment against falling from a height. The ACCEN TRAX PW II anchor point was developed to secure people working on flat roofs.
Product parameters ACCEN TRAX PW II anchor point:
Colour: yellow
Mounting on: rivets/tex screws
Maximum applied force: 12 kN
Number of people: 3
Material: stainless steel
Weight: 2000 g
Certification: EN 795 A, CEN/TS 16415
Additional parameters
| Category: | Anchoring points - anchoring device type A |
|---|---|
| Installation: | sandwich panel |
