Product detailed description

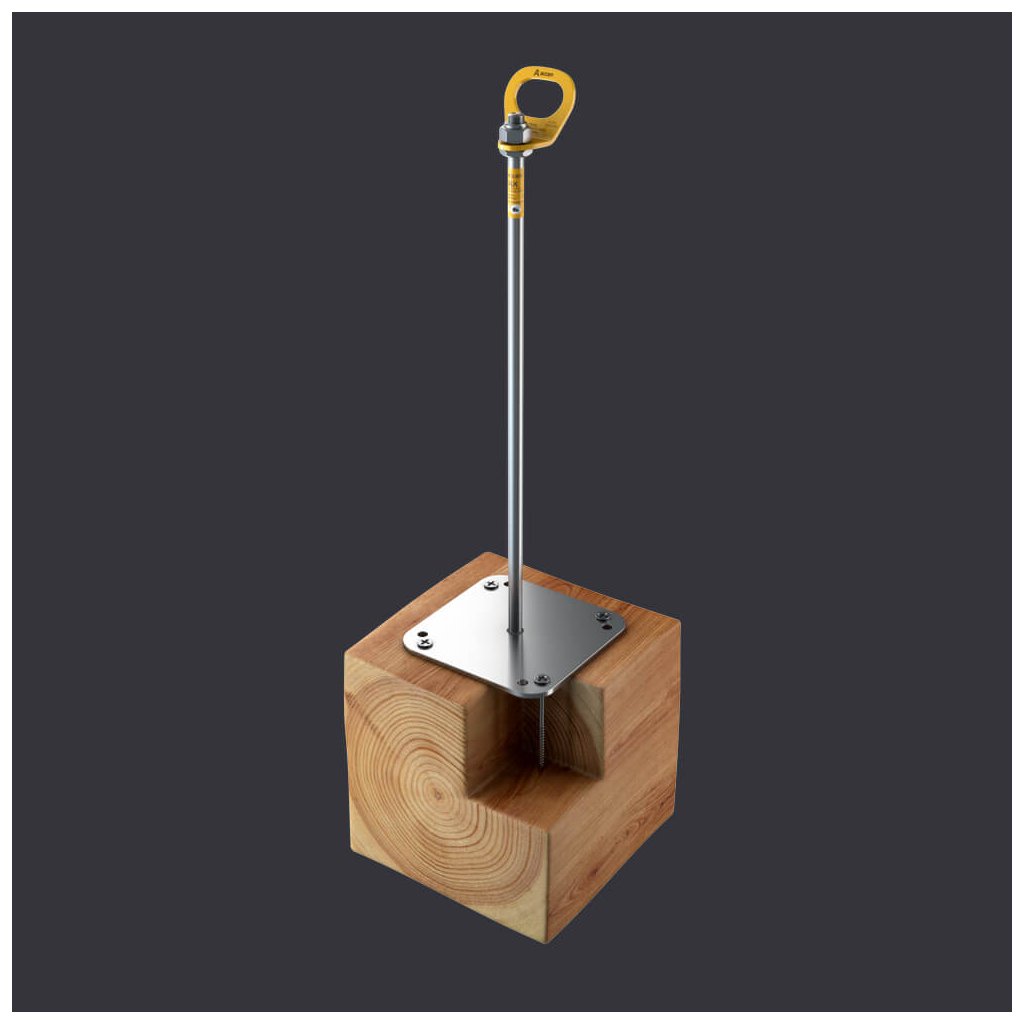

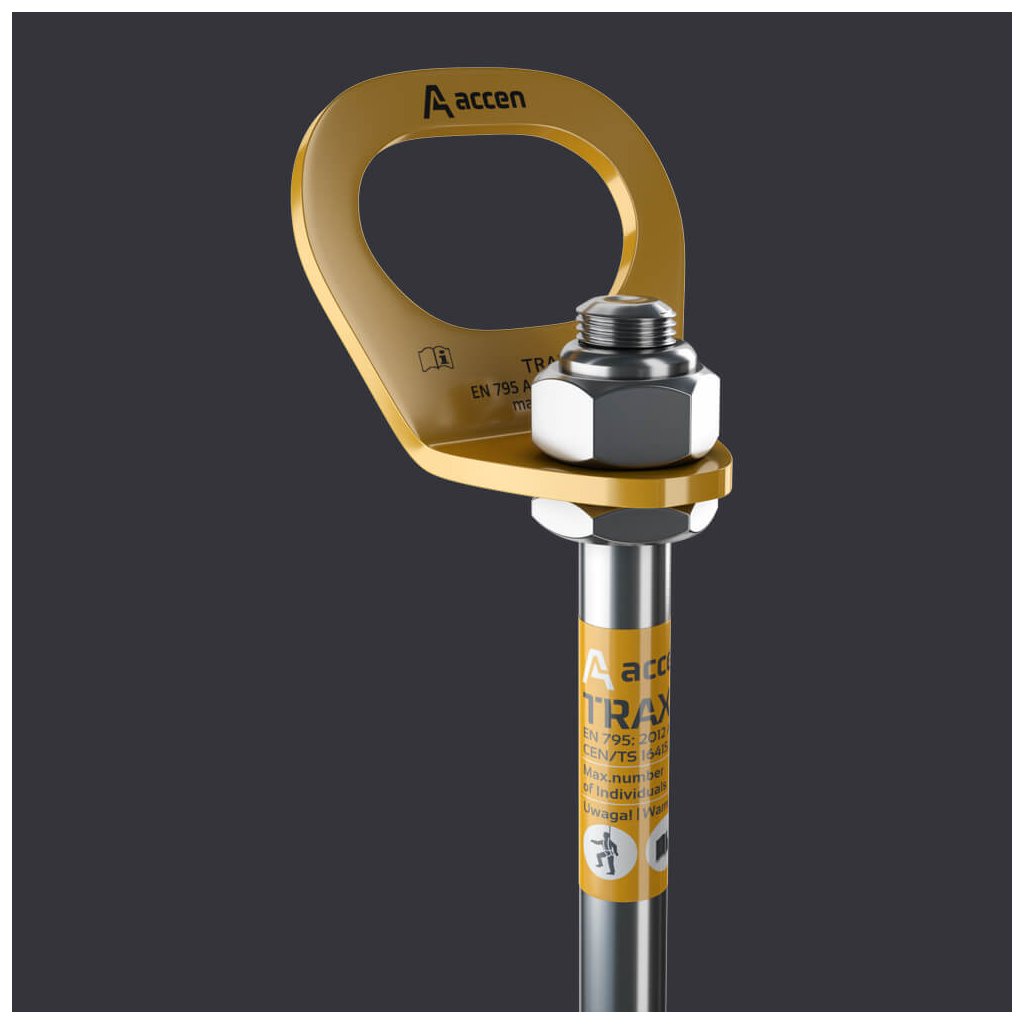

An anchoring device that is intended for mounting to wooden structural elements using ST 12 mm x 120 mm construction screws. A safety eye is mounted on the upper part of the anchor point, which is painted yellow for better orientation. The eye allows rotation around its axis in the range of 360° and thus allows work in all directions. Thanks to this, it prevents the formation of loops in the event of connecting safety devices. up to three people at the same time can connect to the point using personal protective equipment against falling from a height. The ACCEN TRAX BX D anchor point was developed to secure people working on flat roofs. It can also be used as a continuous anchor point of a horizontal rope system.
Product parameters ACCEN anchor point TRAX BX D:
Color: yellow
Available in lengths : 100, 200, 300, 400, 500, 600, 700, 800, 900 and 1000 mm
Number of people: 3
Material: stainless steel
Weight: 4000 g
Certification : EN 795 A, CEN/TS 16415
Additional parameters
Parameter name | Parameter |
---|---|
Category: | Anchoring points - anchoring device type A |
Installation: | wooden profiles |
