Product detailed description

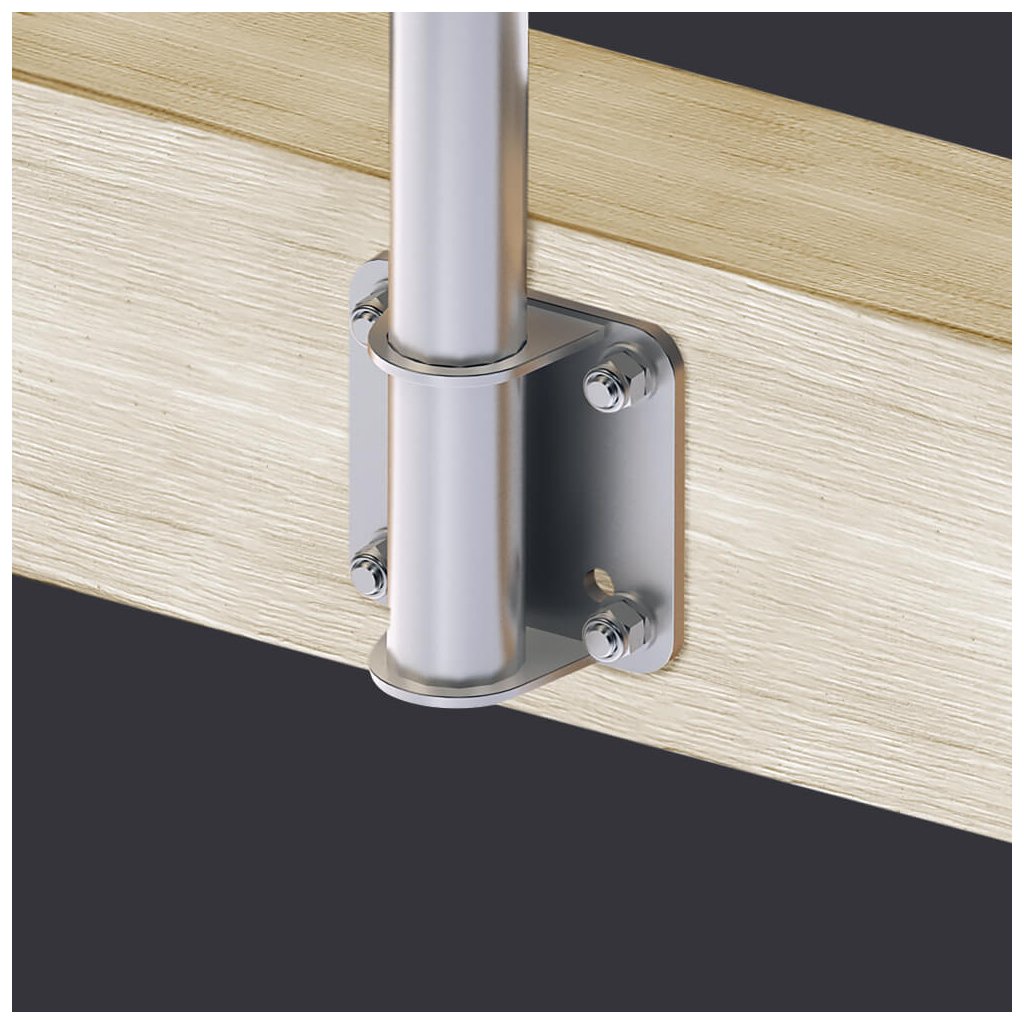

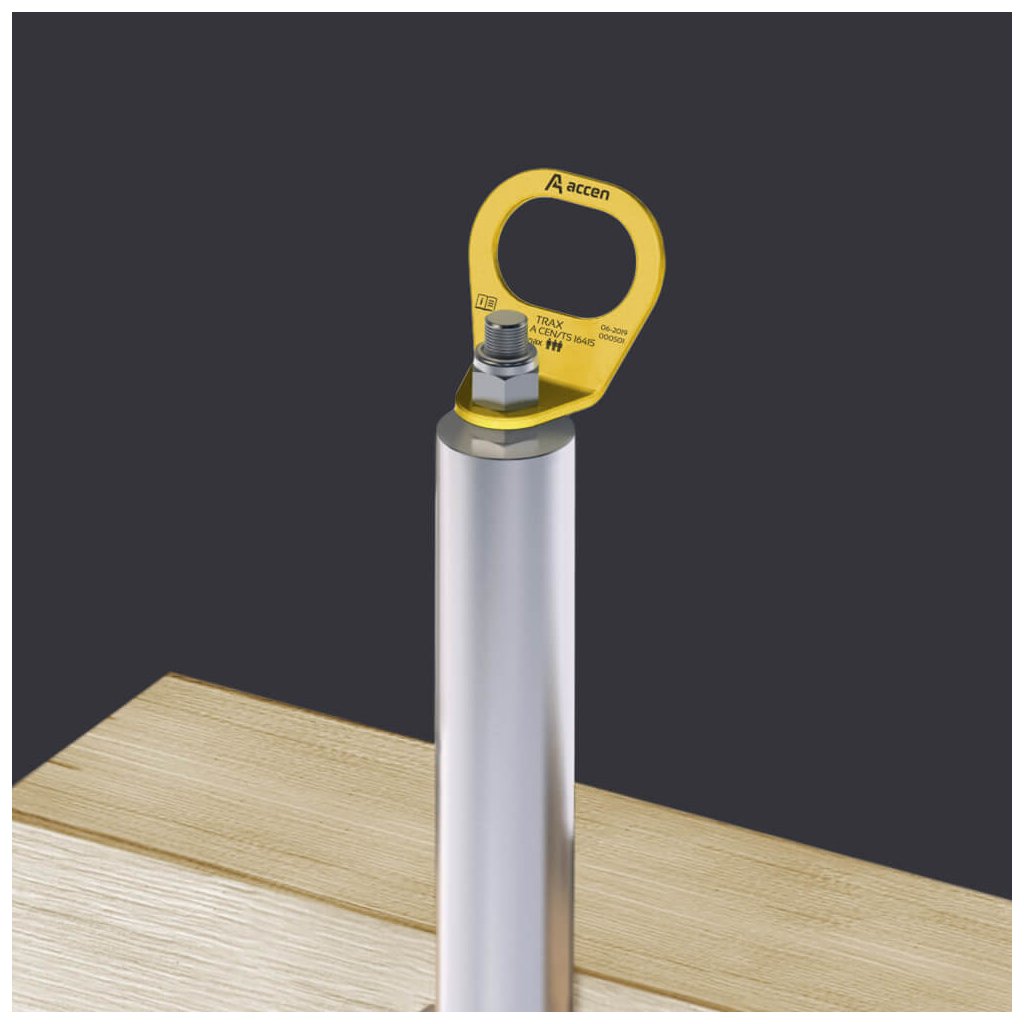

The AXIS DB belay post is an anchoring device attached to a wooden structural beam of class C24, designed to connect personal protective equipment against falling from a height. The AXIS DB securing post meets the requirements of EN 795/2012 type A/C and technical specifications CEN/TS 16415:2013. It is permanently installed in structural timber C4. The cross-section of the beam must be at least 140 mm high and 100 mm wide. AXIS DB is intended as an end and corner support of the AccenLine rope system. When installed with the Trax swivel, it can be used as a freestanding post. Fastening is done using 4 metric M12 threaded rods.
Material: INOX
Weight: 3.9 kg
Height: 300-600 mm
diameter: Ø 52 mm
Dimension bases: 140x140mm
Number of users: 3
Standard: EN 795 TYPE A/C, CEN/TS 16415: 2013
Assembly base: structural wood class C24.
Additional parameters
| Category: | Fall protection systems |
|---|---|
| Installation: | wooden profiles |
